10AWG Silicone Wire | High Temperature For Energy Storage

UL3530 10AWG high temperature silicone wire, UL certified, RoHS & REACH compliant, ideal for energy storage cabinet, inverter and lithium battery internal wiring.

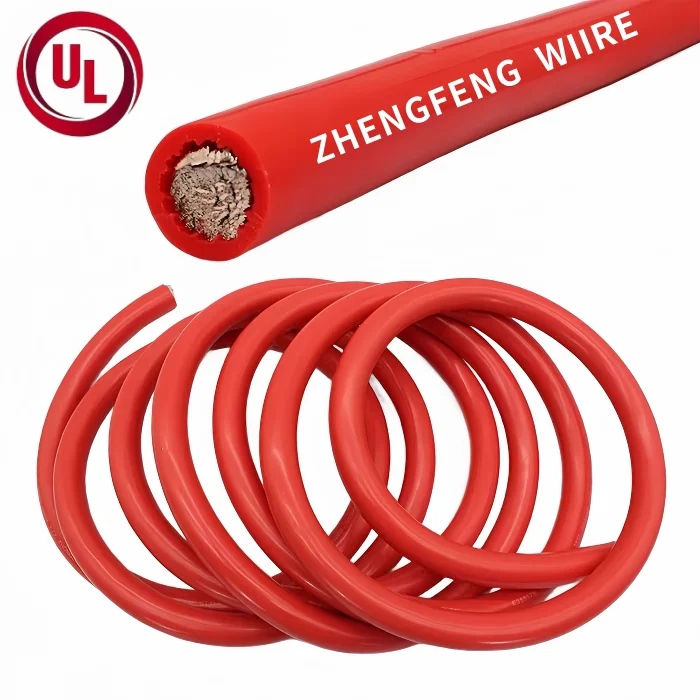

UL3530 10AWG Silicone Wire

Product Brand

Guangdong Zhengfeng Wire&Cable

Conductor

Tinned copper wire

Construction

TS 105*0.254

Rated Temperature

-60℃ ~200°C

Product Certification

UL certified

Wire Gauge

10AWG

+86 13829292517

manager01@wire-cablemanufacturer.com

Contact Now

+ Inquire

10AWG Silicone Wire | High Temperature For Energy Storage

UL3530 10AWG Silicone Rubber Wire

Tinned or bare, stranded or solid copper conductor, 26-12AWG, Silicone Rubber insulation.

UL3530 10AWG silicone wire is one of our high-current high-temperature silicone wire models, widely used for energy storage cabinet internal wiring, inverter connection, lithium battery module main connection and new energy equipment power wiring.

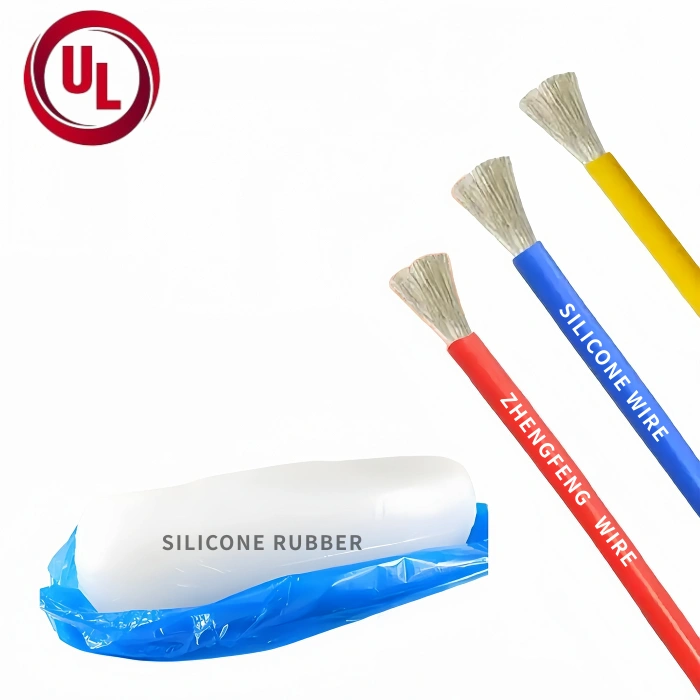

Made of high-purity tinned copper conductor and high-performance silicone insulation, it features excellent high temperature resistance, soft bending performance, anti-aging and flame retardant property. Fully UL certified, RoHS and REACH compliant, suitable for export to Europe, ASEAN, Middle East and global new energy markets.

Key Features

Genuine UL certified, safe and reliable for new energy application
Excellent high temperature resistant and anti-aging performance
Good flexibility, easy stripping and convenient for harness processing
Stable current carrying capacity for medium and high current connection
RoHS & REACH compliant, environmental friendly for global export

Product Description

Rated temperature: -60°C ~200°C

Rated voltage: 600V

Reference standards: UL758,UL1581,UL2556

ul3530

Pass UL FT2 Horizontal flame test

Conductor			Insulation		Maximum Resistance at 20℃
AWG	No./mm	Diamater	Thickness	Diamater	Maximum Resistance at 20℃
26	7/0.16	0.48	0.76	2.10	150
24	11/0.16	0.61	0.76	2.20	94.2
22	17/0.16	0.76	0.76	2.35	59.4
20	26/0.16	0.94	0.76	2.55	36.7
18	41/0.16	1.18	0.76	2.80	23.2
16	26/0.254	1.49	0.76	3.10	14.6
14	41/0.254	1.87	0.76	3.50	8.96
12	65/0.254	2.36	0.76	4.00	5.64
10	105/0.254	3.06	1.15	5.4	3.55

UL Certified

Our product is UL certified, and our factory operates under ISO9001 – so you can count on consistent quality.

14awg cable

14 guage wire

ISO9001 cable suppliers

Flexible wire ul3530

18awg

18guage cable

8awg silicone wire

10guage silicone cable

Applicable Environment

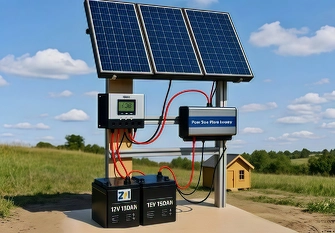

Energy storage cabinet internal wiring, inverter power connection, lithium battery module main line, industrial new energy equipment, high current internal connection of electronic devices.

hook up wire

Automotive industry

ul3530 cable

Office equipment

ul3530 lead wire

Home appliances

battery silicone wire

Battery

3530 wire spec

New Energy Equipment

wire and cable

Medical Device

Product Packaging

Custom packaging & shipping via sea, air, or land available.

internal wiring

silicone wire factory

electrical wire

Our Partners and Certification

Our products are trusted by many customers and fully comply with REACH & RoHS.

amazon wire Suppliers

cable factory

electric cable

Cross-Linked Cables

PVC Electronic Wire

PVC Insulated Wire Manufacturer

ul Cable Manufacturers

Wire and Cable Manufacturers

ul3530 14awg

ul3530 16guage

10guage

Who we are?

25 years Wire & Cable Manufacturer Factory

Guangdong Zhengfeng Wire&Cable Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.

Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.

We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.

Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.

ZHENGFENG WIRE&CABLE

WIRE&CABLE supplier

wire factory in China

China cable factory

zhengfeng wire supplier

We’ve compiled a list of our most frequently asked questions

If you have a question that is not listed, our support team is always happy to help

How soon can l expect delivery?

For products in stock, we ship immediately. Otherwise, production typically takes 7-10working days.

What are your available transportation methods?

We offer transportation by sea, land, and air.

What makes UL3530 silicone wires different from ordinary PVC wires?

Silicone insulated wires offer superior flexibility, high-temperature resistance, and flame retardancy, making them ideal for demanding environments where PVC wires would degrade or become brittle.

What are the key electrical and temperature ratings of UL3530 10AWG silicone wire?

Rated voltage: 600V AC. Temperature range: -60℃ to +200℃. Conductor: Stranded tinned copper. Insulation: Silicone rubber. Flame test: passes UL FT2 horizontal flame test. It also performs well in low‑temperature flexibility and high‑temperature aging resistance.

What current can UL3530 10AWG silicone wire handle in a lithium battery BMS system?

For high‑quality silicone wire with a 10AWG stranded tinned copper conductor (approx. 5.26mm² cross‑section), the safe continuous current is typically 45A, with a maximum short‑term current of up to 55A. When wiring BMS primary circuits, it is recommended to apply a 20‑25% safety margin based on the actual continuous load current.

Why is silicone wire recommended over ordinary PVC wire for lithium batteries and energy storage systems?

Silicone wire offers a wide operating temperature range (-60℃ to +200℃), extreme flexibility (easier routing in tight battery pack spaces), superior flame retardancy (UL FT2/VW‑1), and excellent aging resistance. In contrast, ordinary PVC wire typically only withstands up to 80‑105℃, becomes stiff at low temperatures, and tends to crack after long‑term use. For energy storage applications, silicone wire is clearly the more reliable choice.

What's the difference between UL3530 and other UL silicone wire models like UL3135 and UL3239?

UL3530 is rated 600V, -60℃ to +200℃ (or +150℃ for some older specs), and is a standard silicone insulated hook‑up wire suitable for general battery and storage internal wiring. UL3135 is also 600V grade but often has slightly different insulation thickness/diameter. UL3239 is a high‑voltage silicone wire rated up to 3kV to 50kV DC, intended for high‑voltage applications rather than the 600V class. For typical 48V~600V lithium BMS and energy storage applications, UL3530 is fully adequate.

Is UL3530 10AWG silicone wire expensive? How is its cost‑effectiveness?

Compared to ordinary PVC or rubber cables, UL3530 silicone wire has a higher material cost due to the silicone insulation and high‑strand tinned copper conductor. However, considering its excellent reliability, long service life, high‑temperature safety, soft routing convenience, and UL certification, it offers outstanding cost‑effectiveness for lithium BMS and energy storage applications, especially where long‑term stability and safety are critical.

How can I tell genuine UL3530 silicone wire from counterfeit products and assess its quality?

Visit the official UL website to verify whether a factory holds UL certification—for example, by entering the UL file number E522608.

Q10

What specifications and colors are available for UL3530 10AWG silicone wire?

UL3530 10AWG is available in a wide range of jacket colors including Red, Black, White, Yellow, Blue, Green, Yellow/Green (ground), Brown, Orange. Custom printing and packaging (reels, coils, cut‑to‑length) are also available. For color guidance: use Red for battery positive/BMS main positive, Black for battery negative/BMS main negative, and Yellow/Green for grounding.
