14AWG Ultra Flexible Silicone Wire for Battery Pack
Product Brand
Guangdong Zhengfeng Wire&Cable
Conductor
Bare/Tinned copper wire
Construction
TS 400*0.08
Rated Temperature
200°C
Product Certification
UL certified
Wire Gauge
30AWG-6AWG
14AWG Ultra Flexible Silicone Wire
UL3530 14AWG silicone wire is designed for high-current and high-flexibility applications such as lithium battery packs, drones, robotics, energy storage systems and electric vehicles.
With ultra-fine stranded tinned copper conductors and high-temperature silicone insulation, the cable provides excellent flexibility, easy soldering performance and long bending life.
Compared with standard PVC wire, UL3530 silicone cable offers superior heat resistance, soft touch and reliable performance in compact installation environments.
Product Description
Rated temperature: 200°C
Rated voltage: 600V

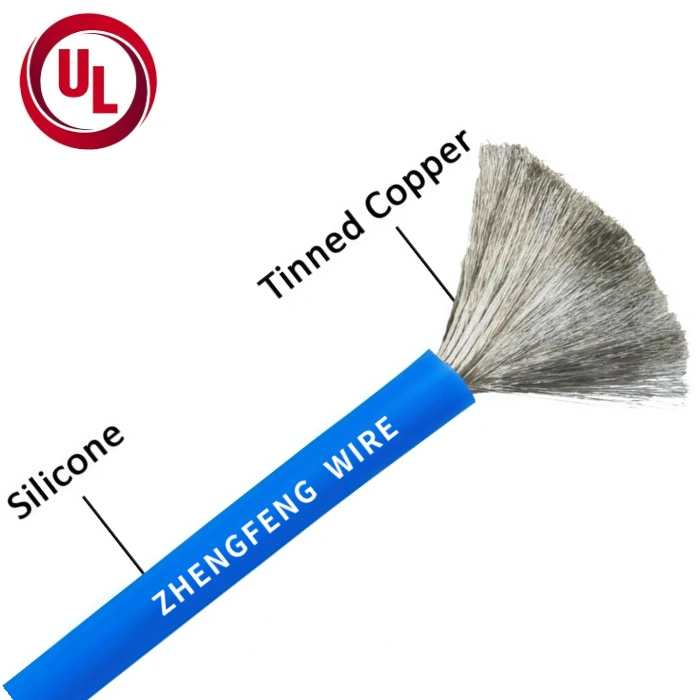

Conductor: 400/0.08mm tinned copper conductor
Insulation: Silicone Rubber
Color: Customizable
Reference standards: UL758,UL1581,UL2556
|
Conductor |
Insulation |
COND.RESISTANCE
(Ω/KM20℃)
|
Unit Length
|
|||
|
AWG |
No./mm |
Diamater |
Thickness |
Diamater |
||
| 6 | 3200/0.08 | 5.6 | 1.45 | 8.5 | 1.13 | 100 |
| 8 |
1650/0.08 |
3.75 |
1.35 |
6.5
|
2.17
|
100 |
| 10 | 1050/0.08 | 3.0 | 1.20 | 5.5 | 3.69 | 100 |
| 12 | 680/0.08 | 2.40 | 1.05 | 4.5 | 5.74 | 100 |
| 14 | 400/0.08 | 1.85 | 0.80 | 3.5 | 9.4 | 200 |
| 16 | 252/0.08 | 1.45 | 0.75 | 3.0 | 14.45 | 200 |
| 18 | 150/0.08 | 1.15 | 0.55 | 2.3 | 24.47 | 200 |
| 20 | 100/0.08 | 0.95 | 0.45 | 1.8 | 37.42 | 200 |
| 22 | 60/0.08 | 0.72 | 0.45 | 1.7 | 61.95 | 200 |
| 24 | 40/0.08 | 0.58 | 0.45 | 1.6 | 91.7 | 200 |
| 26 | 30/0.08 | 0.50 | 0.45 | 1.5 | 115.5 | 200 |
| 28 | 16/0.08 | 0.37 | 0.40 | 1.2 | 225.0 | 200 |
| 30 | 11/0.08 | 0.31 | 0.25 | 0.8 | 335.0 | 200 |
UL Certified
Applicable Environment

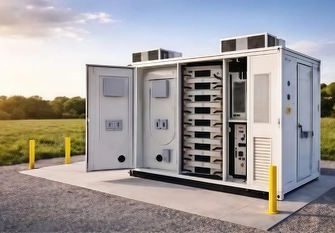

Solar energy storage

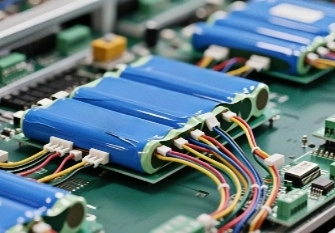

Lithium battery packs
Home appliances

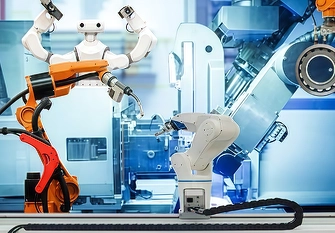

Industrial automation and robotics
New Energy Equipment
Battery modules
Product Packaging
Our Partners and Certification
Who we are?
Guangdong Zhengfeng Wire&Cable Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.
Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.
We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.
Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.
We’ve compiled a list of our most frequently asked questions
What is 14AWG silicone wire used for?
14AWG silicone wire is widely used in lithium battery packs, drones, robotics and high-flexibility power applications.
Is UL3530 wire suitable for battery packs?
Yes. UL3530 silicone wire offers excellent flexibility, heat resistance and solderability for battery module assembly.
Why use silicone wire for lithium batteries?
What is the difference between UL3530 and UL3135?
Can UL3530 silicone wire handle high current in battery packs?
What makes UL3530 wire more flexible than other silicone wires?
Can UL3530 wire withstand high temperatures?
Can UL3530 wire be customized for color or length?
Is it suitable for battery and inverter connections?
How does it perform in high vibration environments?
