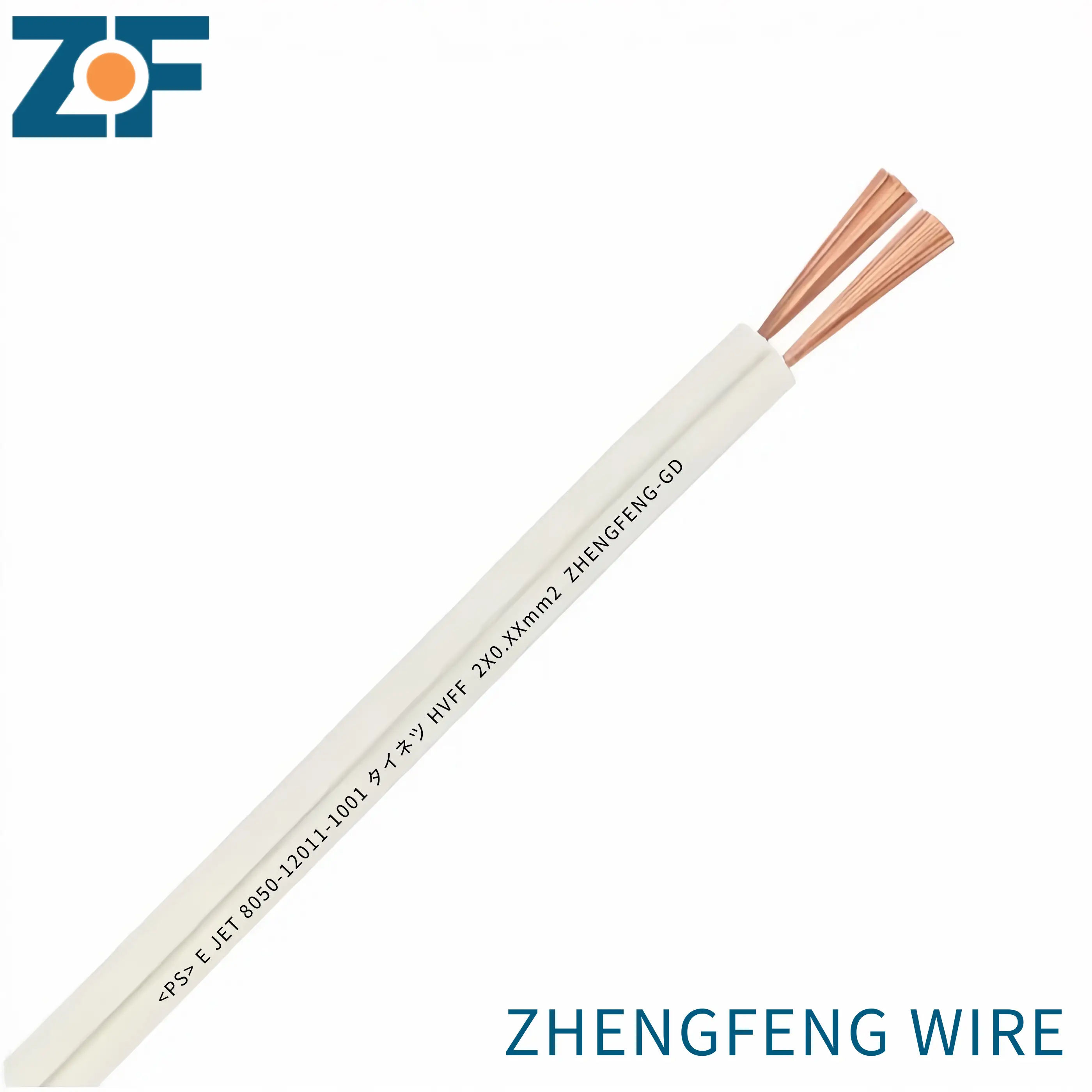

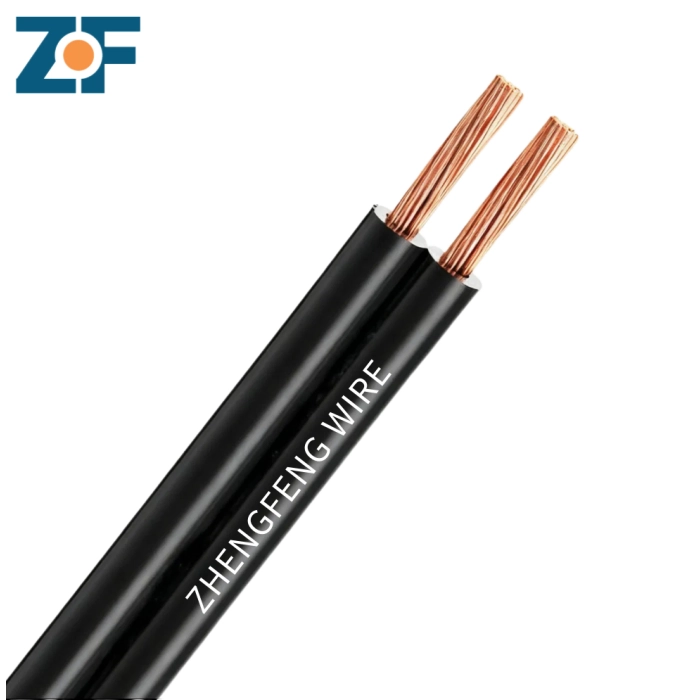

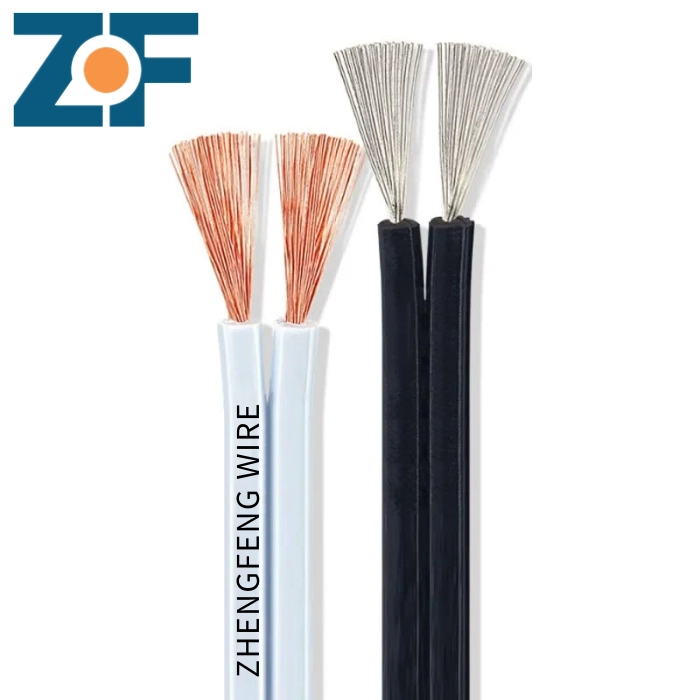

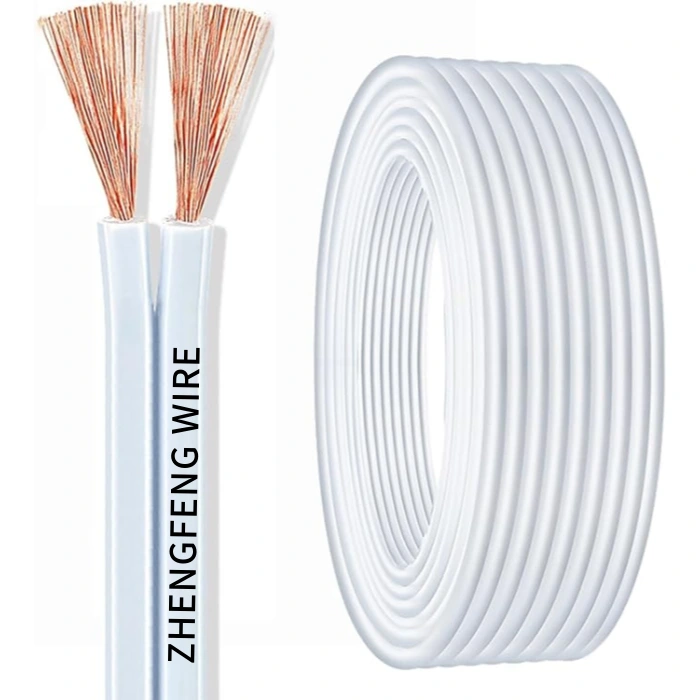

Japan JET HVFF PVC Insulated Flat Parallel Cable PSE Wire
Product Brand
Guangdong Zhengfeng Wire&Cable
Conductor
Bare copper wire
Construction
BC 30*0.18
Rated Temperature
75°C
Product Certification
PSE certified
Wire Gauge
0.5mm²-2.0mm²
JET PSE HVFF PVC Insulated Flat Cable

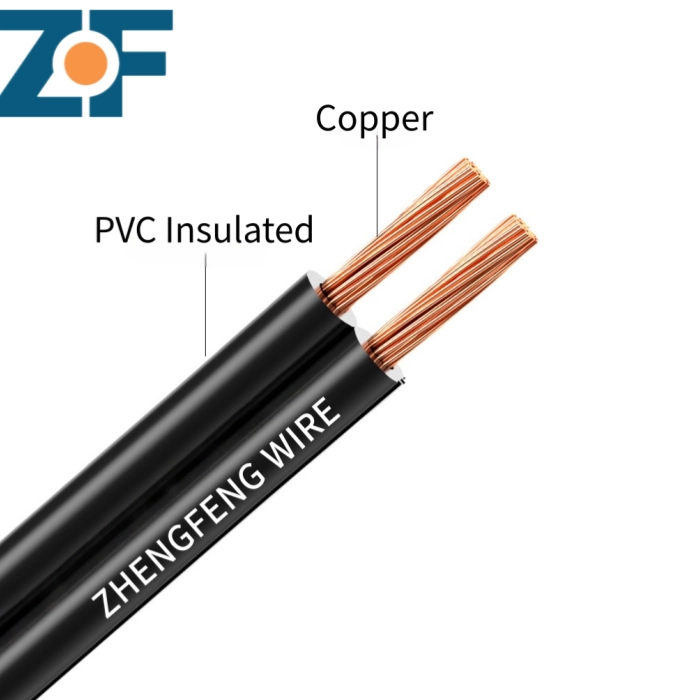

HVFF (Heat-resistant Vinyl Flat Flexible) PVC insulated flat cable is a 300V rated, 75°C heat-resistant power cord. Reference standard :Appendix 1 & JIS C 3306, Passes JIS C3005-4.26.2(b) flame test. It used primarily for small, indoor electric appliances, such as lighting, televisions, and audio devices. It features parallel-conductors, excellent flexibility, and RoHS/PSE compliance, making it suitable for compact, high-flexibility applications.
Product Description
Rated temperature: 75°C
Rated voltage: 300V
Reference standards: Appendix 1 & JIS C 3306
Pass JIS C3005-4.26.2(b) flame test

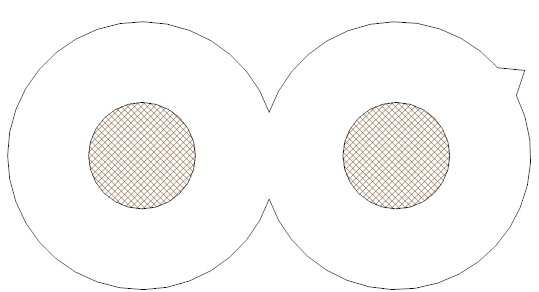

| Style |
Conductor |
Insulation |
Maximum Resistance at 20℃ |
|||
| MM² | No./mm |
Diamater (mm) |
Thickness (mm) |
Diamater (mm) |
||
| HVFF |
0.5 |
20/0.18 |
0.92 |
0.80 |
2.50*5.00 |
36.7 |
|
0.75 |
30/0.18 |
1.13 |
0.80 |
2.70*5.40 |
24.4 |
|
| 1.25 | 50/0.18 | 1.47 | 0.80 | 3.10*6.20 | 14.7 |
|
| 2.00 | 37/0.26 |
1.82 | 0.80 | 3.40*6.80 |
9.50 |
|
<PS> E Certified
Applicable Environment
Automotive industry
Office equipment
Home appliances
Lighting
New Energy Equipment
Medical Device
Product Packaging
Our Partners and Certification
Who we are?
Guangdong Zhengfeng Wire&Cable Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.
Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.
We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.
Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.
We’ve compiled a list of our most frequently asked questions
What is Japan JET HVFF PVC Insulated Flat Parallel Cable??
Is HVFF cable PSE certified and JET approved?
What’s the difference between HVFF and VFF cables?
Both are Japanese standard flat parallel flexible wires.
HVFF: Heat‑resistant PVC insulation, higher temperature rating.
VFF: Standard PVC insulation, general‑purpose version.Both follow JIS C 3306 and require PSE certification for Japan market.
