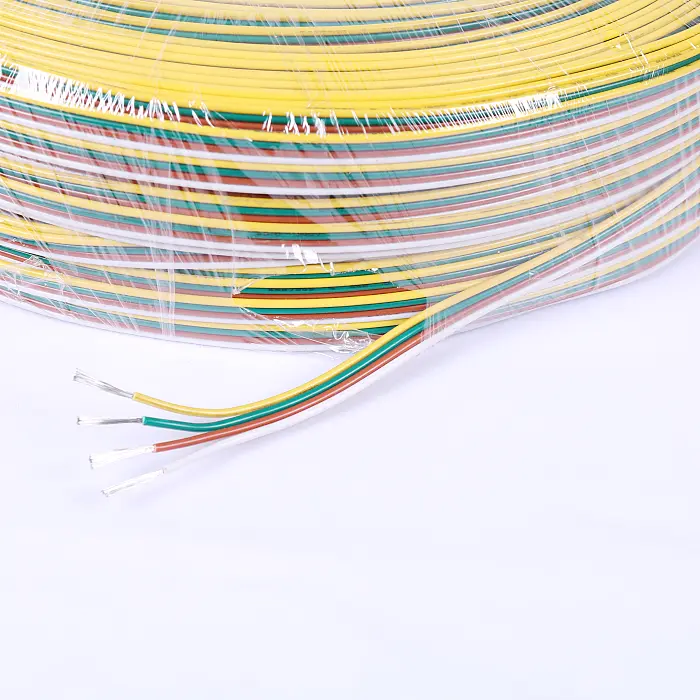

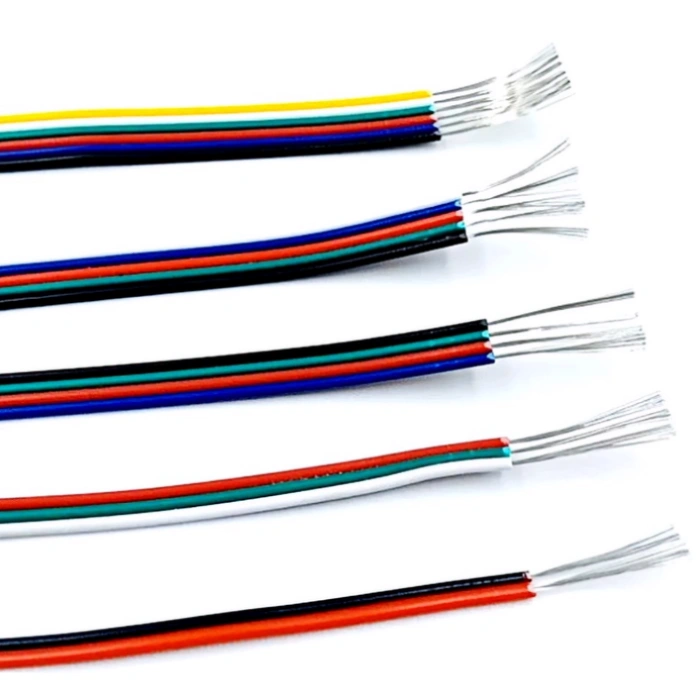

PVC Insulated Electrical Wire Flat Ribbon Cable UL2569
Product Brand
Guangdong Zhengfeng Wire&Cable
Wire Core Material
Bare/tinned copper wire
Number of Cores
TS 7*0.16
Rated Temperature
105°C
Product Certification
UL certified
Wire Gauge
30AWG-10AWG

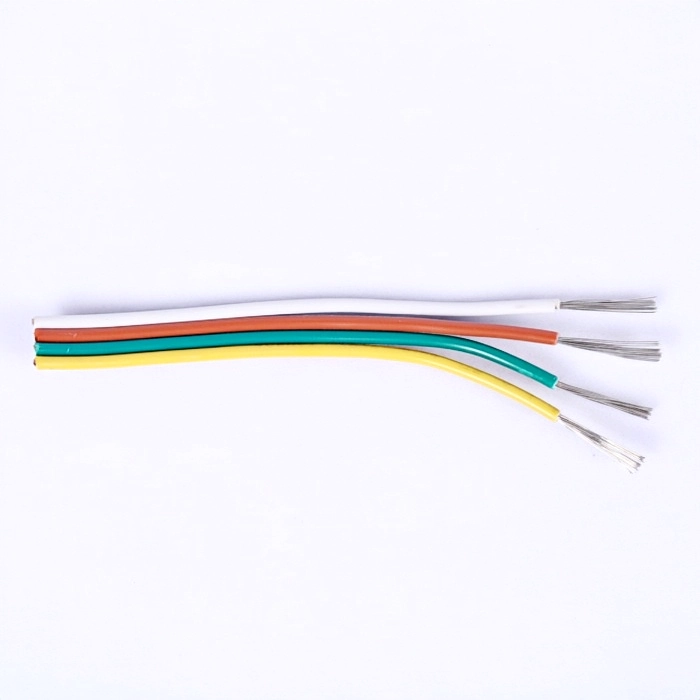

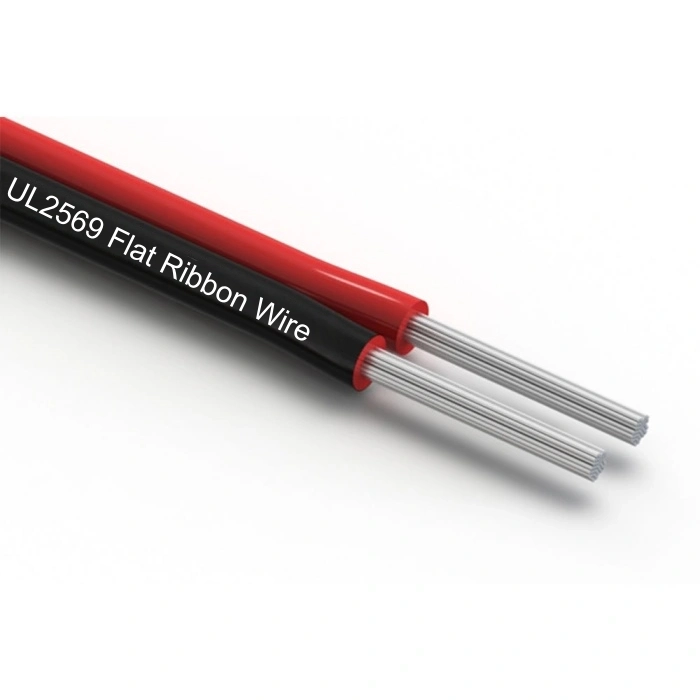

UL2569 Flat Ribbon Wire
UL2569 is a UL (Underwriters Laboratories) standard for a type of flat ribbon cable used in appliance wiring, featuring parallel copper conductors (solid or stranded, tinned/bare) within PVC insulation, rated for 600V , and offering 105°C temperature, known for flexibility and use in internal appliance/computer connections, often in rainbow/multi-color formats for easy identification.
Guangdong Zhengfeng Wire&Cable manufactures a full range of UL2569 rainbow cables, compliant with UL certification, passing ULVW-1 and CSA FT1 vertical flame test, and meeting RoHS and REACH environmental requirements. Direct from the manufacturer, quality is guaranteed.
Product Description
Rated temperature: 105°C
Rated voltage: 600V
Reference standards: UL758,UL1581,CSA C22.2 No.210
Pass UL VW-1 & CSA FT1 vertical flame test
|
Conductor |
Insulation |
Maximum Resistance at 20℃ |
||||
| Cores |
AWG |
No./mm |
Diamater |
Thickness |
Diamater |
|
|
2 |
28 |
7/0.127 |
0.38 |
0.76 |
2.00x4.10 |
239 |
|
2 |
26 |
7/0.16 |
0.48 |
0.76 |
2.10x4.30 |
150 |
|
2 |
24 |
71/0.20 |
0.60 |
0.76 |
2.20x4.70 |
94.2 |
|
2 |
22 |
7/0.254 |
0.76 |
0.76 |
2.35x4.80 |
59.4 |
|
2 |
20 |
26/0.16 |
0.94 |
0.76 |
2.55x5.20 |
36.7 |
|
2 |
18 |
41/0.16 |
1.18 |
0.76 |
2.80x5.70 |
23.2 |
|
3 |
28 |
7/0.127 |
0.38 |
0.76 |
2.00x6.20 |
239 |
|
3 |
26 |
7/0.16 |
0.48 |
0.76 |
2.10x6.50 |
150 |
|
3 |
24 |
7/0.2 |
0.60 |
0.76 |
2.20x6.90 |
94.2 |
|
3 |
22 |
7/0.254 |
0.76 |
0.76 |
2.35x7.25 |
59.4 |
|
4 |
28 |
7/0.127 |
0.38 |
0.76 |
2.00x8.30 |
239 |
|
4 |
26 |
7/0.16 |
0.48 |
0.76 |
2.10x8.70 |
150 |
|
4 |
24 |
7/0.20 |
0.60 |
0.76 |
2.20x9.10 |
94.2 |
|
4 |
22 |
7/0.254 |
0.76 |
0.76 |
2.35x9.70 |
59.4 |
|
5 |
28 |
7/0.127 |
0.38 |
0.76 |
2.00x10.40 |
239 |
|
5 |
26 |
7/0.16 |
0.48 |
0.76 |
2.10x10.90 |
150 |
|
5 |
24 |
7/0.20 |
0.60 |
0.76 |
2.20x11.40 |
94.2 |
|
5 |
22 |
7/0.254 |
0.76 |
0.76 |
2.35x12.15 |
59.4 |
UL Certified
Applicable Environment
Automotive industry
Office equipment
Home appliances
Lighting
New Energy Equipment
Medical Device
Product Packaging
Our Partners and Certification
Who we are?
Guangdong Zhengfeng Wire&Cable Technology Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.
Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.
We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.
Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.
