UL AWM 1569 Type, PVC Hook-Up Wire, 105℃ 300V，Factory Direct Supply.

UL1569 Hook Up Wire is a single-core PVC insulated electrical wire designed for internal wiring applications in electrical appliances, electronic equipment, control panels and equipment assemblies.

UL1569 Hook-up Wire

Product Brand

Guangdong Zhengfeng Wire&Cable

Conductor

Bare/Tinned copper wire

Construction

TS 41*0.16

Rated Temperature

105°C

Product Certification

UL certified

Wire Gauge

2AWG-30AWG

+86 13829292517

manager01@wire-cablemanufacturer.com

Contact Now

+ Inquire

UL AWM 1569 Type, PVC Hook-Up Wire, 105℃ 300V，Factory Direct Supply.

UL1569 Hook-up Wire

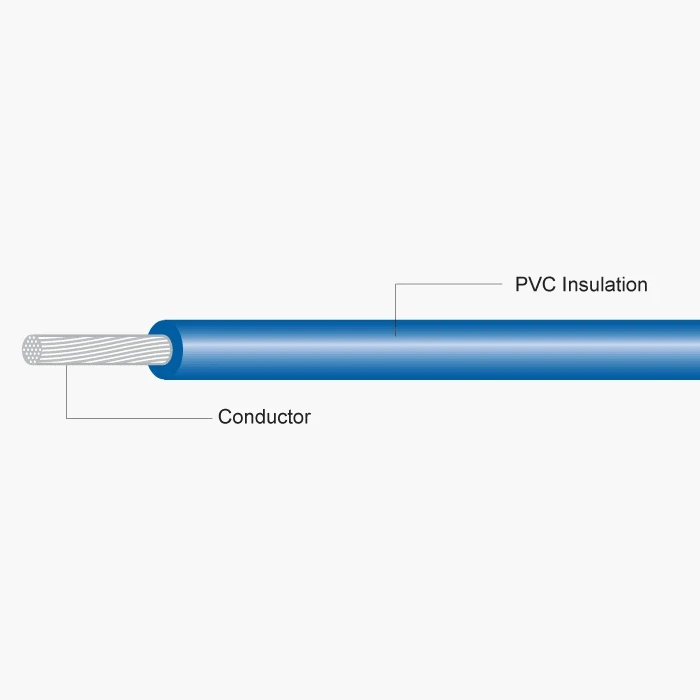

Tinned or bare, stranded or solid copper conductor, 30-2AWG PVC insulation.

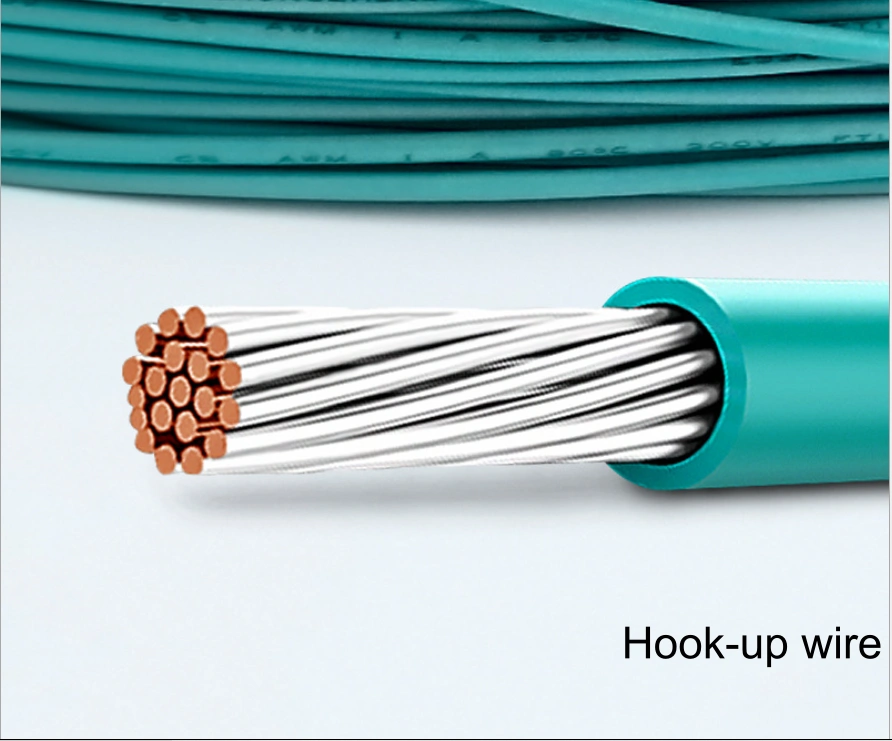

UL 1569 hook-up wire, which is a single-conductor wire with PVC insulation used for internal wiring in appliances and electronic equipment. It is rated for 300 volts, has a temperature rating of up to \(105\degree C\), and is designed to be self-extinguishing and resistant to oil, solvents, and flexing. Meets the UL VW-1 vertical wire flame test.

Product Description

Rated temperature: 105°C

Rated voltage: 300V

Reference standards: UL758,UL1581,CSA C22.2 No.210

Single Tinned copper conductor

Pass UL VW-1 & CSA FT1 vertical flame test

Conductor			Insulation		Maximum Resistance at 20℃(Ω/km)
AWG	No./mm	Diamater(mm)	Thickness(mm)	Diamater(mm)	Maximum Resistance at 20℃(Ω/km)
30	7/0.10	0.30	0.38	1.10	381.00
28	7/0.127	0.38	0.38	1.20	239.00
26	7/0.16	0.48	0.38	1.30	150.0
24	11/0.16	0.61	0.38	1.40	94.2
22	17/0.16	0.76	0.38	1.60	59.40
20	26/0.16	0.94	0.38	1.80	36.70
18	41/0.16	1.18	0.38	2.10	23.20
16	26/0.254	1.49	0.38	2.35	14.60

UL Certified

Our UL1569 hook up wire is manufactured to approved UL AWM requirements, with product documentation, quality control and RoHS support for global OEM projects.

UL AWM 1569

UL1569 PVC wire

10awg ul1569

24guage wire

ul1569 24awg

PSE electric wire

UL1569 E522608

UL PVC CABLE

Applicable Environment

UL1569 wire supports internal wiring in appliances, electronic equipment, control panels, meters, transformers and OEM assemblies where reliable PVC insulation and compact routing are required.

1569 WIRS

Automotive industry

UL LISTED WIRE

Office equipment

16AWG UL1569 WIRE

Home appliances

Lighting WIRES UL1569

Lighting

8 GUAGE CABLE

New Energy Equipment

UL1569 PVC INSULATED

Medical Device

Product Packaging

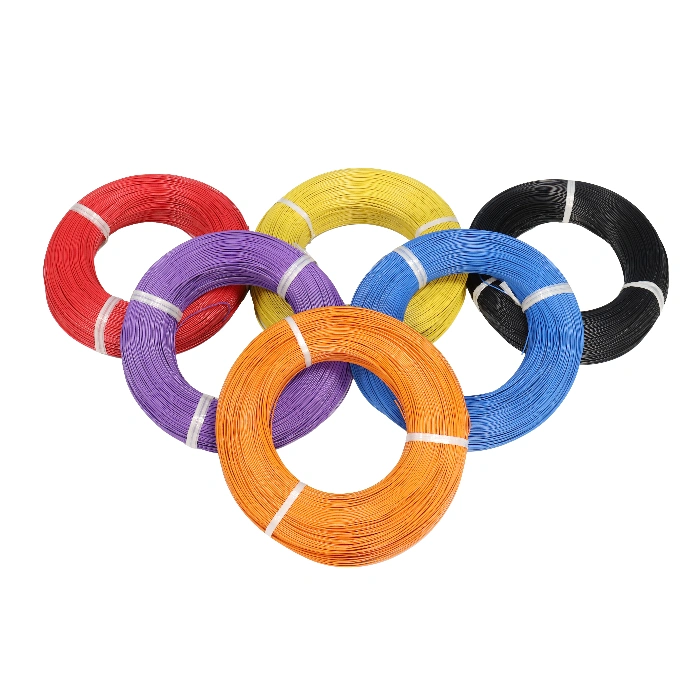

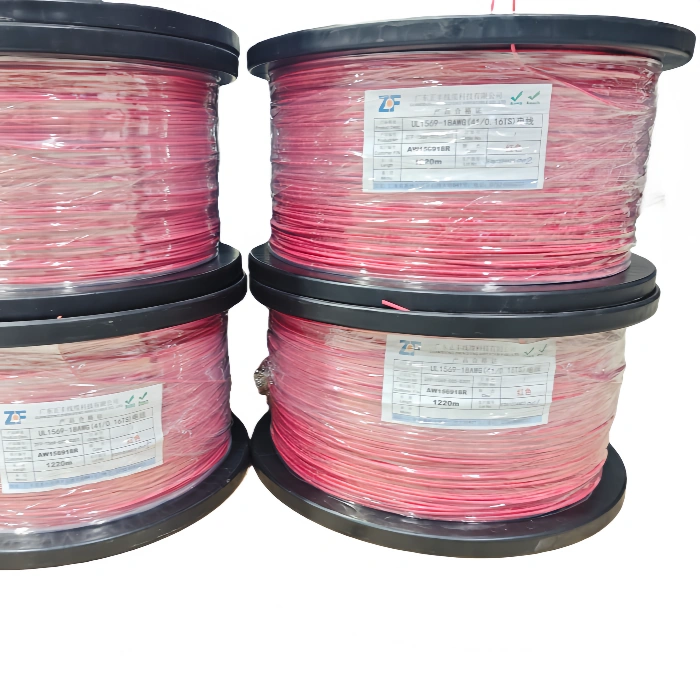

Zhengfeng supplies UL1569 hook up wire in reels, coils, cartons and customized packaging. Choose lengths, labels and packing details to match your production and shipping needs.

Wholesale UL 1569

Wholesale UL1569 WIRE

AWM 1569 Cable

Our Partners and Certification

Zhengfeng supports OEM and international wire buyers with UL-focused manufacturing, ISO 9001 quality management, RoHS and REACH compliance for reliable sourcing.

amazon 1569 wires

TTI

CCIC

mindray

Midea

BYD

ul1569

ISO9001 zhengfeng wire

REACH

RoHS

PSE

Who we are?

25 years Wire & Cable Manufacturer Factory

Guangdong Zhengfeng Wire&Cable Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.

Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.

We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.

Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.

ZHENGFENG WIRE

ZHENGFENG CABLE

China wire factory

electrical cable manufacturers

high voltage cable manufacturers

We’ve compiled a list of our most frequently asked questions

If you have a question that is not listed, our support team is always happy to help

What is UL1569 hook up wire?

UL1569 hook up wire is a single-core electrical wire with extruded PVC insulation, designed for internal wiring in electrical appliances and electronic equipment. It is an Appliance Wiring Material style under UL 758. The wire is commonly available with a 300V rating, while temperature and construction depend on the approved product specification.

What is the voltage rating of UL1569 wire?

UL1569 wire is commonly rated at 300V. However, customers should confirm the exact voltage rating on the manufacturer’s datasheet and UL documentation before using it in a specific application. The voltage rating should not be confused with higher-voltage UL wire styles such as UL1015.

What temperature is UL1569 hook up wire rated for?

UL1569 may be manufactured in different temperature-rated constructions. UL’s historical Style 1569 reference lists 80°C, 90°C or 105°C at 300 Vac. Many commercial UL1569 products are offered as 105°C, 300V. Always confirm the exact temperature rating of the selected wire before installation.

What is the difference between UL1569 and UL1007 wire?

Both UL1569 and UL1007 are commonly used for internal wiring, but their temperature ratings differ. UL1007 is typically 80°C, 300V, while UL1569 is commonly offered at 105°C, 300V. The appropriate choice depends on the equipment’s temperature, insulation and certification requirements.

Is UL1569 wire suitable for control panels?

Yes. UL1569 hook up wire is used for internal wiring in electrical control panels, meters, electronic equipment and appliances. It is suitable for protected internal connections where the selected wire construction meets the application’s voltage, temperature and mechanical requirements.

Can UL1569 wire be used in household appliances?

UL1569 is commonly used for internal wiring in electrical appliances, including equipment such as air conditioners, electric ovens and other electronic or electrical products. Before using it in a household appliance, verify that the specific UL1569 construction is suitable for the appliance’s operating conditions.

What conductor materials are available for UL1569 wire?

UL1569 wire can be supplied with solid or stranded copper conductors. Depending on the product construction, bare copper or tinned copper may be available. Stranded copper is often selected for easier routing and assembly, while conductor selection should be based on the approved design and electrical requirements.

What AWG sizes are available for UL1569 hook up wire?

UL Style 1569 reference information covers a broad conductor size range, including 30 AWG through 2 AWG. Actual commercial sizes depend on the manufacturer’s approved construction and production range. Zhengfeng can confirm available AWG sizes, conductor structure, insulation thickness and outer diameter for your project.

Can Zhengfeng Wire & Cable customize UL1569 wire colors and packaging?

Yes. Zhengfeng Wire & Cable can discuss customized wire colors, conductor options, packaging lengths, reels, coils, labels and cartons according to the product specification and order requirements. Please send your target AWG size, color, length, quantity and required documents for a quotation.

Q10

How can I order UL1569 hook up wire from Zhengfeng Wire & Cable?

Contact Guangdong Zhengfeng Wire & Cable Co., Ltd. with your required AWG size, conductor material, temperature rating, voltage, insulation color and estimated quantity. Our team can help confirm the suitable UL1569 construction, provide product information and discuss samples, pricing and packaging.
