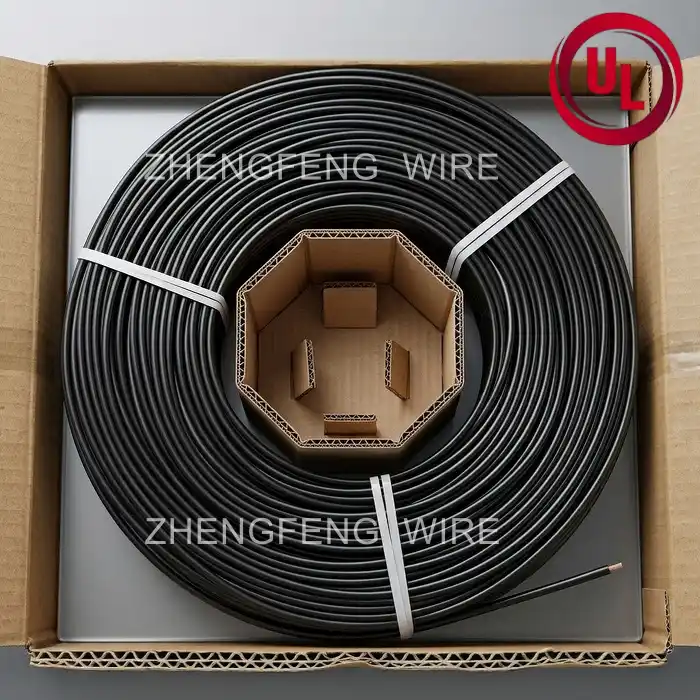

UL1569 30AWG Fine Wire for Miniature Electronics and Controls

When electronic equipment becomes smaller, the internal wiring layout can become increasingly difficult to manage. UL1569 30AWG fine wire provides a smaller-gauge wiring option for applications where limited internal space, component density and organized wire routing need to be considered together.

The 30AWG size is particularly relevant to miniature electronic assemblies, compact control systems, instrumentation, internal equipment connections and selected low-load circuits. Its fine construction can help reduce the physical space occupied by individual wires and provide greater flexibility when routing multiple connections within a confined assembly.

UL1569 is commonly associated with PVC-insulated AWM wiring for internal electrical and electronic equipment. Typical constructions are rated 300V and 105°C, while the actual approved construction, conductor configuration and application limitations should always be verified against the applicable UL documentation.

For engineers, choosing 30AWG should not simply mean selecting the smallest available wire. The circuit's current requirement, conductor resistance, voltage, temperature, routing conditions, insulation requirements and equipment standard should be evaluated before specifying the wire.

Zhengfeng Wire provides UL1569 30AWG wire for OEM and bulk applications and can discuss conductor construction, insulation color, wire marking, production length, packaging and other project requirements.

Product Description

Rated temperature: 105°C

Rated voltage: 300V

Color:Multiple Colors Available

Reference standards: UL758,UL1581,CSA C22.2 No.210

Pass UL VW-1 & CSA FT1 vertical flame test

1. Built for Miniaturized Equipment

30AWG provides a fine wiring option for electronic products where component density and internal space are important design considerations.

2. Helps Manage High-Density Wiring

The smaller physical size can make it easier to route multiple individual connections within confined equipment interiors.

3. Supports Organized Internal Layouts

Color and marking options can help engineers identify individual circuits and maintain cleaner internal wiring arrangements.

4. Suitable for Selected Low-Load Circuits

30AWG can be considered where the required electrical load and conductor characteristics are appropriate for the application.

5. OEM-Oriented Production

Zhengfeng can support project-specific wire colors, printing, lengths, conductor configurations and packaging for volume requirements.
