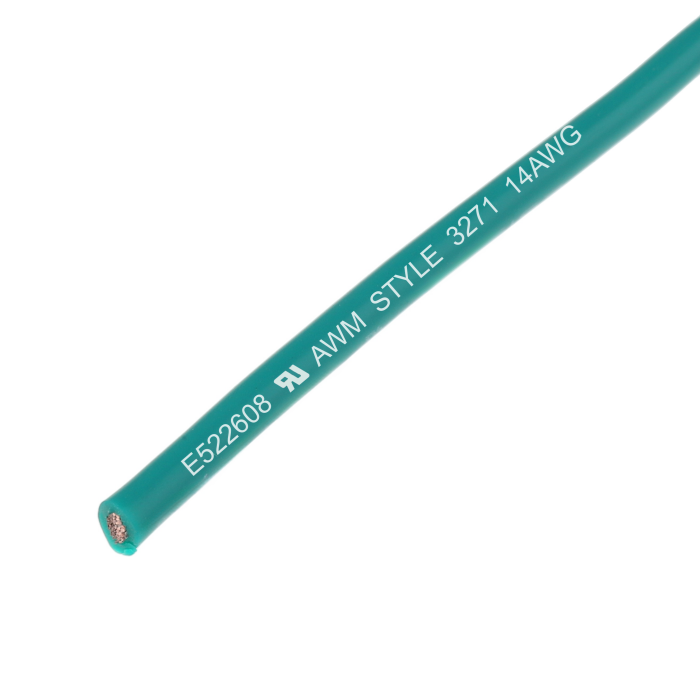

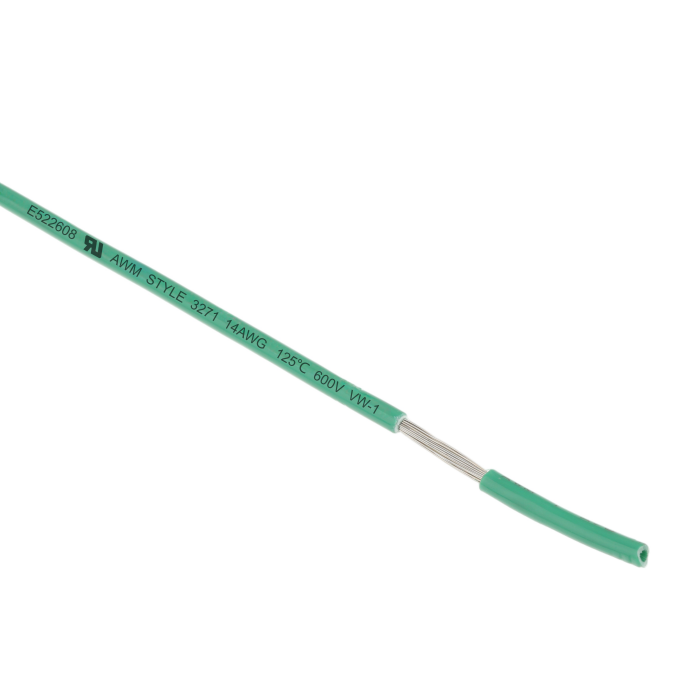

UL3271 14Awg Cross-Linked Polyethylene Hook-Up/Lead Wire
Product Brand
Guangdong Zhengfeng Wire&Cable
Wire Core Material
Bare/tinned copper wire
Number of Cores
TS 41*0.254
Rated Temperature
125°C
Product Certification
UL certified
Wire Gauge
30AWG-4/0AWG
UL3271 Crosslinked Wire

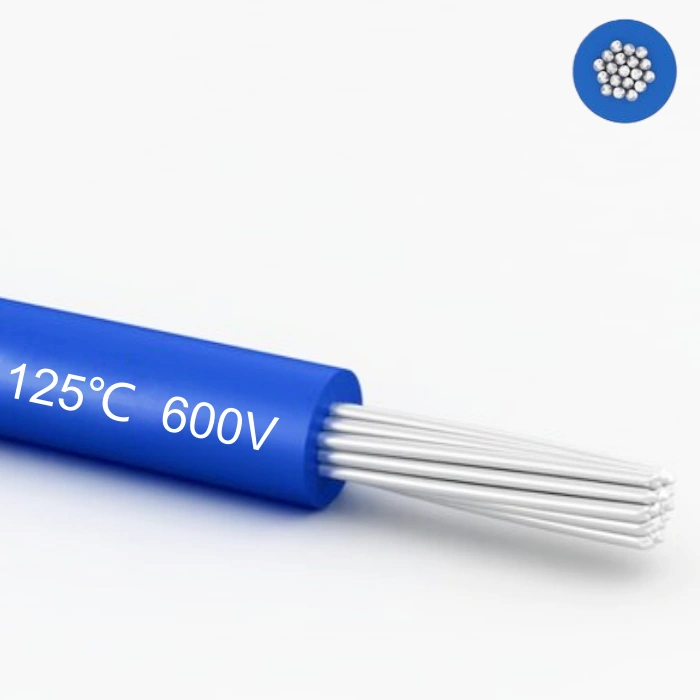

UL 3271 Hook-Up Wire used for internal wiring of appliances, computers, test equipment, business machines, and other office and control equipment. This wire has a maximum temperature rating of 125C and a voltage rating of 600V. Its tinned copper conductor and XLPE insulation provide flame resistance and excellent electrical properties.
Get AWM wire and cable with flexible stranded copper conductor and XLPE insulation from Zhengfeng Wire&Cable ,a professional wire and cable factory of 25 years experience.
Product Description
Rated temperature: 125°C
Rated voltage: 600V
Reference standards: UL758,UL1581,CSA C22.2 No.210
Pass UL & CSA FT2 horizontal flame test
|
Conductor |
Insulation |
Maximum Resistance at 20℃(Ω/km) |
|||
|
AWG |
No./mm |
Diamater(mm) |
Thickness(mm) |
Diamater(mm) |
|
| 28 | 7/0.127 | 0.38 | 0.76 | 2.00 | 239.00 |
|
26 |
7/0.16 |
0.48 |
0.76 |
2.10 |
150.00 |
|
24 |
11/0.16 |
0.61 |
0.76 |
2.20 |
94.20 |
|
22 |
17/0.16 |
0.76 |
0.76 |
2.35 |
59.40 |
|
20 |
26/0.16 |
0.94 |
0.76 |
2.55 |
36.7 |
|
18 |
41/0.16 |
1.18 |
0.76 |
2.80 |
23.2 |
|
16 |
26/0.254 |
1.49 |
0.76 |
3.10 |
14.6 |
| 14 | 41/0.254 |
1.87 | 0.76 |
3.50 | 8.96 |
| 12 | 65/0.254 |
2.36 | 0.76 |
4.00 | 5.64 |
| 10 | 105/0.254 |
3.00 | 0.76 |
4.65 | 3.546 |
| 8 | 168/0.254 | 4.20 | 1.15 | 6.65 | 2.230 |
| 7 | 7/29/0.254 |
4.72 |
1.15 |
7.20 |
1.768 |
| 6 | 7/38/0.254 |
5.40 |
1.15 |
7.90 |
1.403 |
| 5 | 7/30/0.32 |
6.05 |
1.15 |
8.65 |
1.113 |
| 4 | 19/37/0.20 |
7.00 |
1.15 |
9.70 |
0.882 |
| 2 | 19/35/0.254 |
8.65 |
1.15 |
11.45 |
0.550 |
UL Certified
Applicable Environment
Automotive industry
Office equipment
Home appliances
Lighting
New Energy Equipment
Medical Device

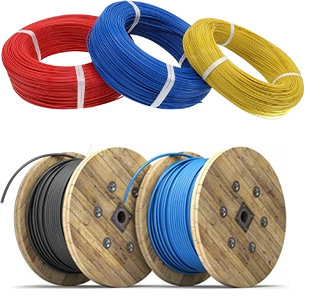

Product Packaging
Our Partners and Certification
Who we are?

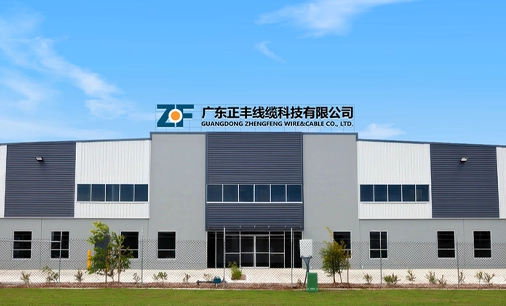

Guangdong Zhengfeng Wire&Cable Technology Co., Ltd. is a professional cable manufacturer specializing in the R&D, production, and sales of wire and cable products, with over 25 years of industry experience.

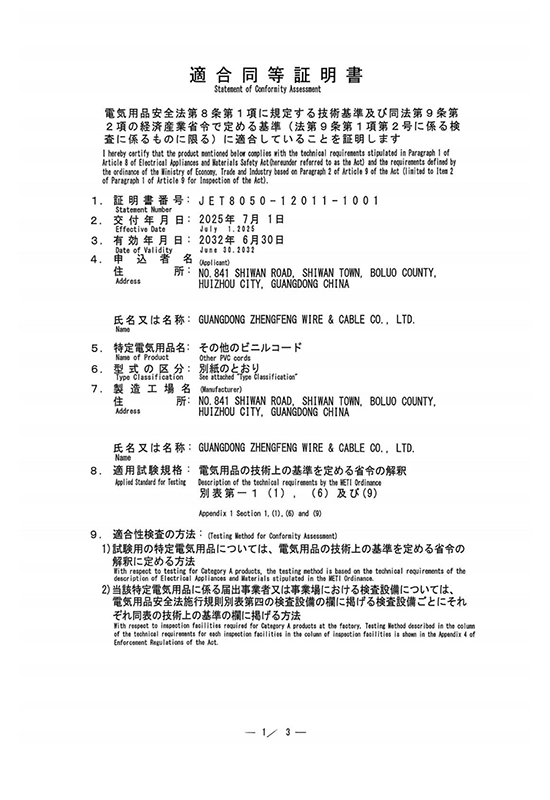

Our company mainly produces PVC electronic wire and power wire, irradiation cross-linked PE/PVC wire, silicone high-temperature flexible wire and Teflon high-temperature wire and other products. According to customers' requirements, we can design and manufacture wires and cables for special purposes. All products are certified to US UL and Japan PSE (S-JET Mark) standards, fully compliant with RoHS/REACH international environmental regulations, delivering globally trusted performance.

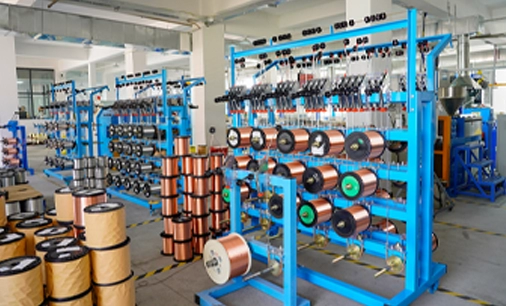

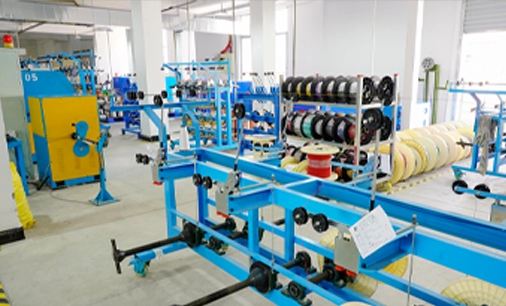

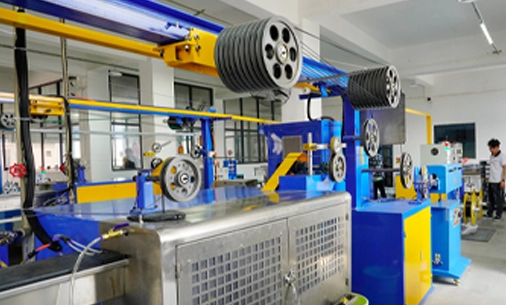

We operate 25 advanced production systems backed by 20 precision metrology instruments, implementing closed-loop quality control from raw material inspection to finished goods delivery. This integrated approach ensures consistent compliance with client specifications, exceeding industry standards for reliability.
Our products are widely applied in fields such as aerospace, automotive industry, sensor materials, smart home, household appliances, lighting and illumination, electrical machinery, medical equipment, electronic equipment, and high-temperature and high-pressure equipment. With advanced technology, excellent quality and superior service, we provide reliable wire products and cable solutions for global customers.
