UL3321 Cross-Linked Polyethylene Hook-Up/Lead Wire,Zhengfeng Cable
Product Brand
Guangdong Zhengfeng Wire&Cable
Wire Core Material
Bare/tinned copper wire
Number of Cores
TS 105*0.254
Rated Temperature
150°C
Product Certification
UL certified
Wire Gauge
30AWG-4/0AWG
UL3321 Crosslinked Wire
UL 3321 is a standard for a specific type of hook-up or lead wire used for the internal wiring of electrical and electronic equipment and appliances.

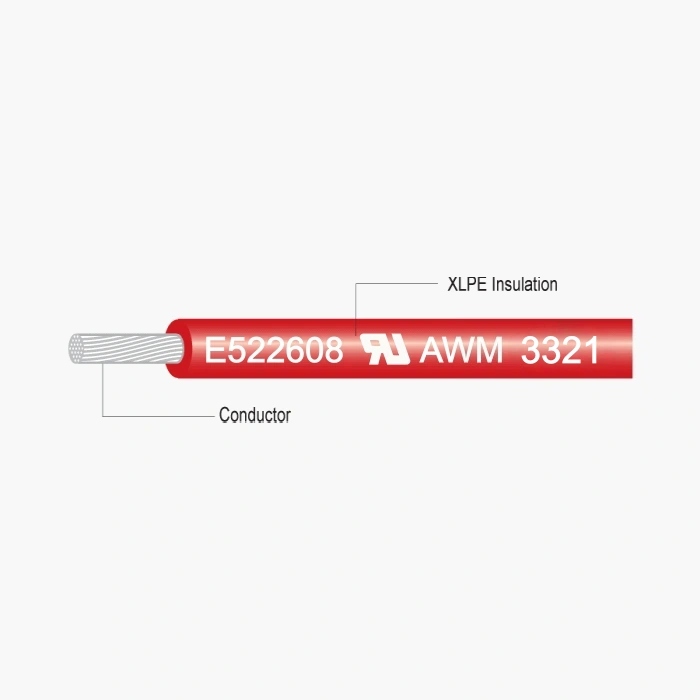

UL 3321 wire features chemically cross-linked polyethylene (XLPE) insulation known for thermal stability and resistance. It is rated for high temperatures (150°C) and voltages (600 VAC). The conductor is typically tinned or bare copper.
This wire is used in high-temperature applications like ranges, heaters, dryers, transformers, motors, and engery storage device.
Product Description

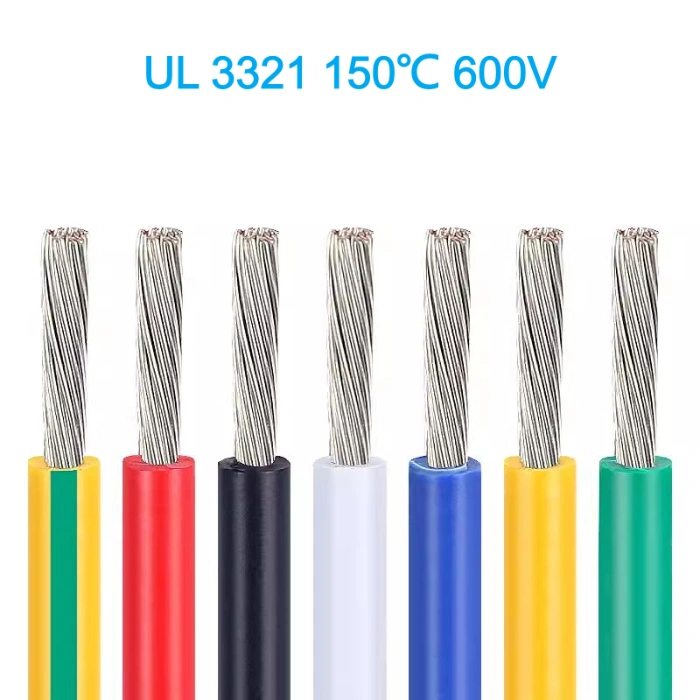

Rated temperature: 150°C
Rated voltage: 600V
Reference standards: UL758,UL1581,CSA C22.2 No.210
Pass UL & CSA FT2 horizontal flame test
|
Conductor |
Insulation |
Maximum Resistance at 20℃(Ω/km) |
|||
|
AWG |
No./mm |
Diamater(mm) |
Thickness(mm) |
Diamater(mm) |
|
|
28 |
7/0.127 |
0.38 |
0.76 |
2.00 |
239 |
|
26 |
7/0.16 |
0.48 |
0.76 |
2.10 |
150 |
|
24 |
11/0.16 |
0.61 |
0.76 |
2.20 |
94.2 |
|
22 |
17/0.16 |
0.76 |
0.76 |
2.35 |
59.4 |
|
20 |
26/0.16 |
0.94 |
0.76 |
2.55 |
36.7 |
|
18 |
41/0.16 |
1.18 |
0.76 |
2.80 |
23.2 |
|
16 |
26/0.254 |
1.49 |
0.76 |
3.10 |
14.6 |
| 14 | 41/0.254 | 1.87 |
0.76 |
3.50 |
8.96 |
| 12 |
65/0.254 |
2.36 |
0.76 |
4.00 |
5.64 |
| 10 |
105/0.254 |
3.00 |
0.76 |
4.65 |
3.546 |
| 8 |
168/0.254 |
4.20 |
1.15 |
6.65 |
2.230 |
| 7 |
7/29/0.254 |
4.72 |
1.15 |
7.20 |
1.768 |
| 6 |
7/38/0.254 |
5.40 |
1.15 |
7.90 |
1.403 |
| 5 |
7/30/0.32 |
6.05 |
1.15 |
8.65 |
1.113 |
| 4 |
19/37/0.20 |
7.00 |
1.15 |
9.70 |
0.882 |
UL Certified
Applicable Environment
Automotive industry
Office equipment
Home appliances
Lighting
New Energy Equipment
Medical Device

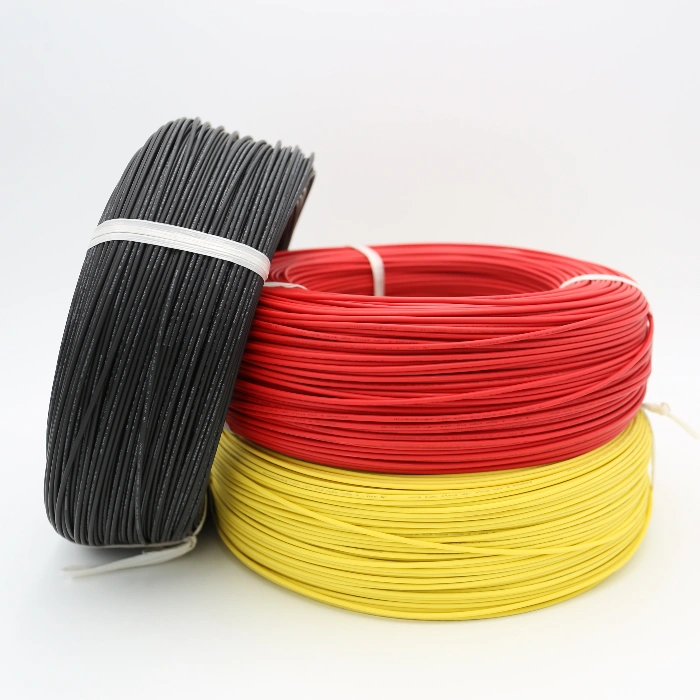

Product Packaging
