What Is UL3321 Wire?

Content

1. What Is UL3321 Wire?

2. Understanding UL3321 Wire Specification

3. What does UL3321 mean in the UL standard?

4. Structure of UL3321 Wires

5. Key Characteristics and Advantages of UL3321 Wires

6. Common Applications of UL3321 Wires

7. UL3321, UL1007, UL1015, UL3173, and Silicone Wire

8. How to Choose the Right UL3321 Wire Specification

9. Quality Testing and Inspection of UL3321 Wires

10. Frequently Asked Questions about UL3321 Wires

11. Conclusion

Introduction

As electrical equipment becomes smaller, more powerful, and more reliable, the demand for high-performance internal wiring continues to grow. Whether you're designing industrial control systems, manufacturing wire harnesses, assembling home appliances, or sourcing components for export markets, selecting the correct hook-up wire is critical to product safety and long-term reliability.

Among the many UL Appliance Wiring Material (AWM) styles available today, UL3321 wire has become one of the most trusted choices for engineers and OEM manufacturers. Thanks to its cross-linked polyethylene (XLPE) insulation, 600V voltage rating, and excellent thermal and mechanical performance, UL3321 is widely used in applications where conventional PVC-insulated wire may not provide sufficient durability.

For purchasing managers, understanding the UL3321 wire specification helps ensure compliance with international safety standards while balancing performance and cost. For design engineers, selecting the right conductor size, insulation material, and temperature rating can significantly improve product lifespan and reduce maintenance risks. For wire harness manufacturers, using certified materials from a reputable UL3321 Wire Manufacturer enhances customer confidence and simplifies certification for finished equipment.

This comprehensive guide explains everything you need to know about UL3321 wire—from its construction and specifications to its key advantages, applications, and selection tips—helping you make informed decisions for your next project.

1. What Is UL3321 Wire?

UL3321 wire is a type of UL-recognized Appliance Wiring Material (AWM) designed for internal wiring in electrical and electronic equipment. It is classified under the UL758 standard and is widely recognized for combining high electrical performance with excellent mechanical durability.

Unlike conventional PVC hook-up wire, UL3321 uses irradiated cross-linked polyethylene (XLPE) insulation. During the cross-linking process, the polymer structure forms strong molecular bonds that significantly improve heat resistance, abrasion resistance, and insulation stability. This enhanced insulation enables UL3321 wire to perform reliably in demanding environments where long service life is essential.

One of the defining characteristics of UL3321 is its 600V voltage rating, making it suitable for a wide range of industrial and commercial equipment. It is commonly installed inside household appliances, power supplies, automation equipment, HVAC systems, LED lighting, battery management systems, medical devices, and industrial control cabinets.

As global manufacturers increasingly prioritize product safety and regulatory compliance, UL3321 has become one of the preferred hook-up wire solutions for equipment exported to North America, Europe, and many other international markets.

2. Understanding UL3321 Wire Specification

Understanding the UL3321 wire specification is essential for selecting the correct wire for your application. Although the wire may appear simple, every specification—from conductor size to insulation thickness—directly influences electrical performance, installation efficiency, and product safety.

UL3321 is primarily recognized as a 600V Hook-Up Wire, allowing it to be used in equipment requiring higher insulation performance than many standard electronic wires. The cross-linked polyethylene insulation provides excellent dielectric strength while maintaining a relatively thin wall, enabling more compact equipment designs without compromising safety.

Typical conductor options include both bare copper and tinned copper. Bare copper offers maximum electrical conductivity and is suitable for most indoor applications, while tinned copper improves corrosion resistance in humid environments and simplifies soldering during wire harness assembly.

UL3321 is available in multiple conductor sizes, typically ranging from 30 AWG to 10 AWG, although availability may vary depending on the manufacturer. Engineers should select the appropriate AWG based on current-carrying requirements, voltage drop considerations, installation space, and mechanical flexibility.

The insulation is manufactured using radiation cross-linking technology, resulting in a material that withstands significantly higher temperatures than standard thermoplastic insulation. This structure also improves resistance to cracking, deformation, and aging, making UL3321 suitable for long-term operation in demanding industrial environments.

In addition to electrical performance, quality manufacturers carefully control insulation concentricity, conductor stranding, and dimensional tolerances to ensure consistent performance during automated wire processing. Precision manufacturing reduces stripping defects, improves crimping quality, and minimizes production downtime for wire harness manufacturers.

Zhengfeng Wire's UL3321 certified products also comply with RoHS and REACH environmental regulations, meeting international environmental requirements.

3. What does UL3321 mean in the UL standard?

To fully understand UL3321 wires, it's essential to understand their meaning within the UL758 Home Appliance Wiring Materials (AWM) standard. It represents a specific wire type approved by UL, with clearly defined structural and performance requirements.

According to the UL758 standard, each AWM type specifies characteristics such as conductor type, insulation material, insulation thickness, rated voltage, rated temperature, and applicable test methods. Manufacturers producing UL3321 wires must strictly adhere to these requirements to obtain UL certification and legally use the UL Approved Components mark.

Another significant advantage of the UL system is traceability. Certified manufacturers are listed in UL's online certification database, allowing buyers to verify whether a supplier is truly authorized to produce UL3321 wires. This verification process helps reduce the risk of counterfeit or substandard products entering the supply chain. For example, you can enter Zhengfeng Wire's UL certification number E522608 on the UL website to find that our certification includes UL3321 wire. We will strictly adhere to UL standards to provide this type of wire to our global customers.

For OEM equipment exported to North America, using genuine UL-certified wire can simplify the product certification process and increase the chances of products gaining approval from inspectors and customers. Many home appliance manufacturers explicitly require the use of UL-certified internal wiring to reduce regulatory risks and ensure long-term safety. If you need to understand matters related to UL certification, Zhengfeng Wire can provide consulting services. This is what distinguishes us from other wire manufacturers; we not only understand UL knowledge but can also produce wires according to UL standards.

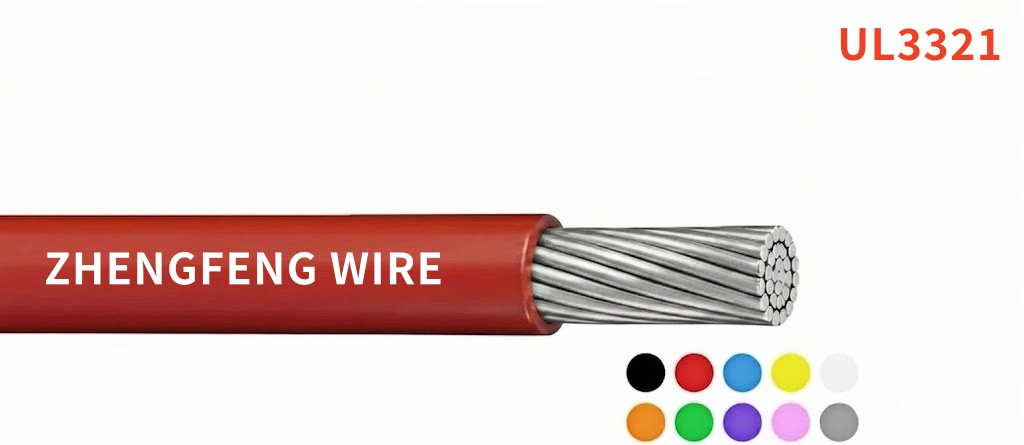

4. Structure of UL3321 Wires

The superior performance of UL3321 wires stems from their meticulously designed structure. From the conductor to the insulation, each layer is carefully designed to withstand mechanical stress and high temperatures throughout the product's lifespan, while providing reliable electrical performance.

The core component is a stranded copper conductor, offering excellent conductivity and flexibility. In practical applications, tin-plated copper conductors are often used, particularly suitable for humid, oxidizing, or frequently soldered environments, as the tin coating enhances corrosion resistance and extends service life.

The conductor is encased in cross-linked polyethylene (XLPE) insulation. Unlike traditional thermoplastics, XLPE undergoes an irradiation cross-linking process that permanently alters its molecular structure. This process forms strong chemical bonds between polymer chains, significantly improving thermal stability, mechanical strength, abrasion resistance, and resistance to environmental aging.

Therefore, this wire maintains its insulation integrity even under prolonged, harsh operating conditions. Compared to standard PVC insulation, XLPE insulation is less prone to softening, cracking, or deformation over time, making UL3321 an ideal choice for high-reliability electrical equipment. Zhengfeng Wires also places great emphasis on the concentricity and dimensional consistency of the insulation layer. Uniform insulation thickness ensures stable dielectric properties and facilitates automated stripping and crimping during wire harness production. High-quality production equipment, online spark testing, conductor resistance measurement, and visual inspection further guarantee product quality stability.

UL3321 wires are available in a variety of colors for easy circuit identification and installation. Standard colors include black, white, red, blue, yellow, green, brown, and gray. Custom colors are also available from Zhengfeng Wires.

5. Key Characteristics and Advantages of UL3321 Wires

The most significant advantage of UL3321 lies in its radiation-crosslinked polyethylene (XLPE) insulation. Unlike traditional PVC insulation, XLPE forms a three-dimensional molecular structure through radiation crosslinking, significantly improving heat resistance, mechanical strength, and insulation stability. Even after years of operation in harsh environments, XLPE maintains its electrical properties and physical integrity, reducing the risk of insulation failure.

As a 600V connection wire, UL3321 has a higher voltage rating than many commonly used electrical wires. This makes it suitable for applications requiring enhanced insulation protection, such as industrial equipment, power distribution systems, and electrical components.

Another key advantage is its superior abrasion resistance, chemical resistance, moisture resistance, and aging resistance. Industrial machinery typically operates in environments with vibration, oil, cleaning agents, and high temperatures, factors that accelerate material aging. UL3321's XLPE insulation withstands these conditions better than traditional thermoplastic insulation, extending equipment life and reducing maintenance frequency.

6. Common Applications of UL3321 Wires

UL3321 wires, with their superior electrical and mechanical properties, are widely used in industries with extremely high requirements for internal wiring reliability. Their versatility makes them one of the most commonly used 600V wiring solutions in both household and industrial equipment.

Household appliances are one of their largest application areas. Products such as refrigerators, ovens, dishwashers, washing machines, coffee makers, air fryers, and microwave ovens contain numerous internal electrical connections that must be able to operate safely for many years. UL3321's XLPE insulation provides the necessary durability to withstand high temperatures and continuous operation.

Wire harness manufacturers also use UL3321 extensively in the production of custom cable assemblies. Wiring harnesses used in automated equipment, vending machines, elevators, HVAC systems, and industrial control cabinets require flexible and durable wires that can withstand repeated installations and long-term vibration. UL3321 provides the mechanical reliability required for these applications.

In industrial automation, programmable logic controllers (PLCs), control panels, servo systems, sensors, and robotic equipment all require reliable internal wiring. Engineers frequently specify UL3321 wires because their stable insulation properties help minimize electrical failures and improve the long-term reliability of systems.

These wires are also widely used in LED lighting systems, power supplies, transformers, battery charging equipment, and energy storage systems. With the continued expansion of global renewable energy infrastructure, manufacturers are increasingly choosing XLPE insulated wires to enhance safety and reduce maintenance needs.

Medical devices represent another important market. Diagnostic instruments, laboratory analyzers, imaging systems, and monitoring equipment typically require compact, high-quality, and electrically stable internal wiring. While the specific requirements of medical devices vary, many manufacturers use UL3321 wires in non-patient-contact internal components due to their reliability and compliance with recognized safety standards.

Automotive electronics and electric vehicle applications also benefit from UL3321 wires, such as in auxiliary circuits, charging systems, battery management components, and internal electronic modules where high-quality connections are required.

Ultimately, the widespread adoption of UL3321 across multiple industries demonstrates its versatility. Its combination of electrical performance, durability, and regulatory compliance makes it a reliable choice for OEM manufacturers serving global markets.

7. UL3321, UL1007, UL1015, UL3173, and Silicone Wire

Choosing the right wiring often requires comparing several UL-certified cables. While these products may look similar, differences in insulation material, rated voltage, temperature resistance, flexibility, and application environment can significantly impact device performance.

UL1007 is one of the most commonly used internal wiring products. It uses PVC insulation and is typically rated at 300V. Due to its affordability, UL1007 is often used in consumer electronics and low-voltage applications. However, PVC insulation has lower heat resistance and mechanical durability than XLPE, making it less suitable for demanding industrial environments.

UL1015 also uses PVC insulation but has a higher rated voltage of 600V. It performs well in many industrial applications but still lacks the excellent thermal stability, abrasion resistance, and aging resistance of XLPE insulation. For these reasons, engineers designing long-life products often choose UL3321.

UL3173 is another type of wire with XLPE insulation, sharing many similarities with UL3321. Depending on the specific application, UL3173 may offer different insulation thicknesses or construction requirements. The choice between the two typically depends on the equipment's certification requirements, available installation space, and the customer's specific requirements.

Many engineers also compare UL3321 to silicone wire. Silicone insulation offers superior flexibility and performs well at both extremely high and low temperatures. It is commonly used in robotics, battery packs, aerospace equipment, and applications requiring frequent movement. However, silicone insulation is generally less abrasion resistant than XLPE and is often more expensive.

For fixed internal wiring, UL3321 typically offers the best balance between flexibility, durability, electrical performance, and cost. Its XLPE insulation is abrasion resistant, maintains excellent dielectric strength, and supports long-term operation in industrial environments, all at a significantly lower price than silicone wire.

The best wire is not necessarily the highest specification, but rather the one that best suits the operating environment, certification requirements, mechanical properties, and budget. Zhengfeng Wire, a manufacturer of UL3321 wires, can help engineers assess these factors and select the most suitable solution.

8. How to Choose the Right UL3321 Wire Specification

The first thing to consider is conductor size (AWG). Larger conductors can carry higher currents and have lower voltage drops, but they require more installation space and increase material costs. Conversely, choosing an undersized conductor can lead to overheating, reduced efficiency, and shortened equipment life. Correct current calculations should always guide conductor selection.

Voltage requirements are equally important. Since UL3321 is rated at 600V, it provides ample safety margins for many industrial applications. However, engineers should still consider transient voltages, insulation coordination, and equipment-specific standards when designing electrical systems.

Environmental conditions also affect wire selection. Equipment exposed to high temperatures, vibration, chemicals, humidity, or mechanical abrasion will benefit greatly from using XLPE insulation. In these environments, UL3321 wires are generally superior to conventional PVC insulated wires because they maintain stable insulation performance over a longer service life.

Another important factor is the conductor material. Bare copper offers excellent conductivity, making it suitable for most applications; while tin-plated copper provides better corrosion resistance and easier soldering, making it ideal for humid environments or complex wire harness assemblies.

Customization needs cannot be ignored. Many OEM manufacturers have specific requirements for insulation color, printed markings, conductor structure, packaging form, or cut length. Zhengfeng Wire has extensive experience in producing UL3321 wires and can provide customized solutions to streamline production processes and improve supply chain efficiency.

Finally, it is essential to verify the supplier's qualifications. Zhengfeng Wire provides UL certification, RoHS and REACH compliance documents, complete technical specifications, etc. We are ISO9001 certified, ensuring consistent product performance across every production batch.

9. Quality Testing and Inspection of UL3321 Wires

High-quality UL3321 wires stem from rigorous production and inspection processes. Comprehensive testing ensures that every roll of wire meets electrical, mechanical, and safety requirements before being delivered to the customer.

One of the most fundamental inspections is the conductor resistance test, which confirms that the copper conductor meets the required conductivity standards. Excessive resistance leads to increased power loss, overheating, and reduced equipment efficiency.

Secondly, a high-voltage withstand voltage test is performed to verify insulation integrity. In this test, the wire is subjected to a voltage far exceeding its normal operating voltage to ensure the absence of insulation defects or electrical breakdown.

Another critical process is the in-line spark test, which is performed continuously during the insulation extrusion process. Any tiny pinholes or insulation damage are immediately detected, allowing defective products to be rejected before packaging.

Dimensional inspection is equally important. Quality inspectors measure conductor diameter, insulation thickness, total wire diameter, and concentricity to ensure compliance with the applicable UL3321 wire specification. Dimensional consistency improves stripping performance and enhances the production efficiency of automated wire harness manufacturing.

Mechanical testing includes assessments of tensile strength, elongation, and insulation adhesion. These tests verify that the wire can withstand stress during installation without conductor breakage or insulation damage.

10. Frequently Asked Questions about UL3321 Wires

Q1. What are UL3321 wires used for?

UL3321 wires are primarily used for internal wiring in electrical and electronic equipment, including household appliances, industrial control systems, wire harnesses, power supplies, LED lighting, HVAC equipment, medical equipment, and automated machinery.

Q2. Is UL3321 a 600V connection wire?

Yes. UL3321 is classified as a 600V connection wire, therefore it is suitable for equipment requiring higher insulation performance and enhanced electrical safety.

Q3. What insulation material does UL3321 use?

UL3321 uses irradiated cross-linked polyethylene (XLPE) insulation, which offers superior heat resistance, mechanical strength, abrasion resistance, and long-term reliability compared to standard PVC insulation.

Q4. What are the AWG specifications for UL3321 wires?

Most manufacturers offer a wide range of UL3321 wire specifications, typically from 30 AWG to 10 AWG, but the specific specifications depend on the manufacturer's UL certification.

Q5. What is the difference between UL3321 and UL1007?

UL1007 typically uses PVC insulation and is rated for 300V; while UL3321 uses XLPE insulation, is rated for 600V, and offers better heat resistance, durability, and insulation performance.

Q6. Can UL3321 wire be customized?

Yes. Most specialized manufacturers can provide customized conductor structures, insulation colors, printed markings, packaging, reel sizes, and cut lengths for OEM applications.

Q7. How can I verify the qualifications of a UL3321 wire manufacturer?

You can verify a supplier's UL certification by checking their UL document number in the UL Product iQ official database.

Q8. Does UL3321 wire include tinned copper wire?

Yes. Tinned copper wire offers better corrosion resistance and solderability.

Q9. Does UL3321 wire comply with RoHS and REACH regulations?

Most export-oriented manufacturers produce UL3321 wires that comply with RoHS and REACH environmental regulations.

Q10. How to choose the appropriate UL3321 wire specification?

Please consider current capacity, rated voltage, operating temperature, installation environment, conductor material, flexibility requirements, certification requirements, and OEM customization requirements.

11. Conclusion

As modern electrical equipment becomes increasingly compact, efficient, and reliable, selecting appropriate internal wiring has become more important than ever. UL3321 wire combines 600V electrical performance, durable XLPE insulation, superior mechanical strength, and long-term reliability, making it one of the most versatile wiring options in industrial and commercial applications.

Whether you are an electrical engineer designing new equipment, a purchasing manager sourcing certified materials, or a wire harness manufacturer seeking consistent product quality, choosing a trustworthy UL3321 wire manufacturer not only ensures compliant products but also helps shorten development cycles, reduce production risks, and enhance customer confidence. Contact Zhengfeng Wires for a quote on UL3321 wires.
