There are two common types offlexible cord wires&cables: UL SPT-1 wire and UL SPT-1W wire. While their names are almost identical, the letter "W" indicates significant differences in design, durability, and intended use. This guide details the key differences between SPT-1 and SPT-1W cords and compares their applications to help you make an informed choice.
First, it's important to understand that both UL SPT-1 and UL SPT-1W cords belong to the UL SPT series, which is widely used in power cords and low-voltage applications. They are designed to meet North American safety standards, including UL 62 and UL 1581, ensuring compliance with electrical safety regulations. However, their material composition and environmental resistance differentiate them.

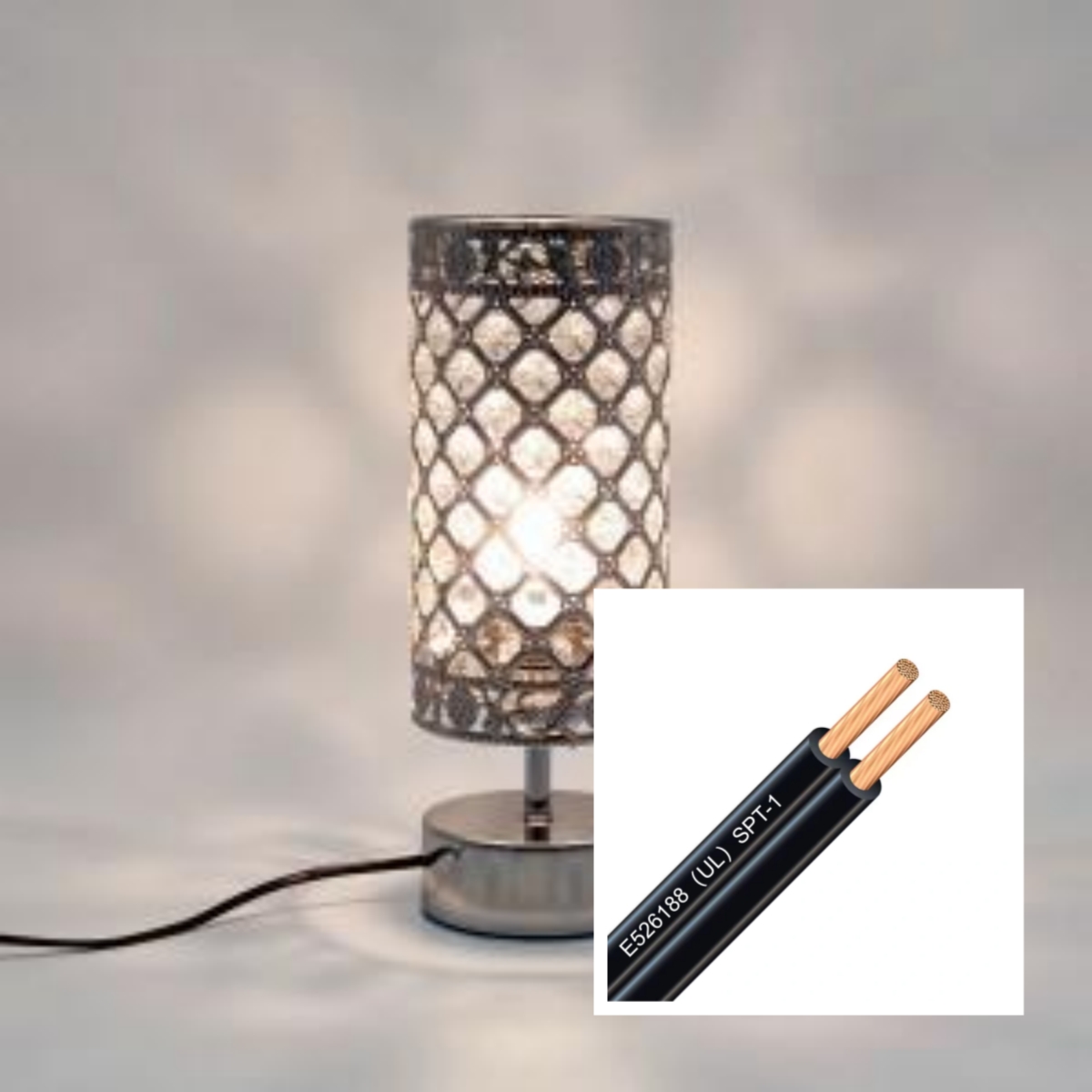

UL SPT-1 wire is a basic, affordable thermoplastic cord primarily used in indoor environments. It uses solid or stranded bare copper conductors (typically 18 to 20 AWG, or US gauge) with PVC (polyvinyl chloride) insulation. The copper conductors ensure excellent conductivity, while the PVC insulation provides basic protection against electric shock and short circuits.
Key specifications of UL SPT-1 wire include a rated voltage of 300V and a temperature range of -20°C to 105°C, making it suitable for general indoor environments with stable temperatures and unaffected by harsh conditions. The insulation thickness is uniform (typically 0.76mm), facilitating stripping and cutting during installation.UL SPT-1 wire is available in 2-core and 3-core configurations, with the 3-core version including a green grounding conductor for enhanced safety. It also meets UL VW-1 and CSA FT1 flame retardant tests, satisfying basic fire safety requirements for indoor use.
A notable characteristic of UL SPT-1 wire is its lack of special environmental performance. Its PVC insulation is not resistant to UV radiation, moisture, or extreme cold, therefore it can only be used indoors in sheltered locations. Lightweight, flexible, and easy to handle, it's ideal for simple indoor wiring projects.
The SPT-1W wire is an upgraded version of the UL SPT-1 wire, with the "W" standing for "weather-resistant." While it shares many core specifications with the UL SPT-1 wire—including the same 300V rating, 18-20 AWG copper conductor, two-core/three-core configuration, and compliance with UL 62 and UL 1581 standards—its insulation and environmental durability differ significantly.
Unlike the standard PVC insulation of the UL SPT-1 wire, the UL SPT-1W wire uses a specially formulated weather-resistant PVC insulation (sometimes also thermoplastic elastomers) and undergoes special treatment to resist UV radiation, moisture, and extreme temperatures. Its operating temperature range is -40°C to 105°C, making it more durable than the UL SPT-1 wire in cold environments. This weather-resistant insulation also protects the wire from sunlight, rain, or damp environments, making it suitable for sheltered outdoor areas or semi-exposed indoor spaces, especially in locations with significant humidity or temperature fluctuations.
Like UL SPT-1 wire, UL SPT-1W wire features uniform insulation thickness, is easy to strip, and has passed UL VW-1 and CSA FT1 flame retardant tests. Furthermore, the three-core version includes a green grounding conductor for safety. The main advantage of SPT-1W wire lies in its versatility—it can be used both indoors and in sheltered outdoor environments, making it a more flexible option for projects requiring protection from mild outdoor conditions.
The biggest difference between UL SPT-1 and UL SPT-1W wires lies in their environmental resistance, which directly affects their intended applications. The following detailed comparison of the best application scenarios for each type of wire, along with practical examples, helps you better understand their uses.
Because UL SPT-1 wires are not weather-resistant, their use in dry, temperature-stable indoor environments is strongly recommended. Their main applications include:
- Residential Indoor Wiring: Power cords for indoor appliances (e.g., table lamps, fans, small heaters, and desktop computers). Also used for low-voltage lighting in living rooms, bedrooms, and other areas (e.g., under-cabinet lighting, decorative string lights).
- Commercial Indoor Use: Wiring for office equipment (printers, scanners, monitors), retail display lighting (indoor shelf lights), and small commercial appliances in restaurants or cafes (e.g., coffee machines, cash registers), which need to be placed in dry, protected areas.
- Light Industrial Indoor Applications: Wiring for small indoor machinery, control panels, and low-voltage equipment in factories or warehouses where the environment needs to be dry and temperature-controlled.
- DIY Projects: Homemade indoor lighting fixtures, craft projects requiring low-voltage wiring, or temporary indoor power extensions (e.g., for home holiday decorations).
It is important to note that UL SPT-1 wires should never be used in damp or wet areas (e.g., bathrooms, kitchens frequently splashed with water) or outdoors, as exposure to moisture or UV radiation can degrade the insulation, leading to short circuits, electric shock, or fire hazards.
UL SPT-1W wires feature weather-resistant insulation, making them suitable for various indoor and outdoor environments. Key applications include:
- Shaded Outdoor Lighting: Suitable for string lights in patios, decks, porches, or gazebos (provided these areas are not directly exposed to heavy rain or snow). It is also suitable for outdoor landscape lighting in shaded areas, such as path lights under eaves or garden lights in shady areas.
- Outdoor Appliances: Power cords suitable for outdoor appliances such as patio heaters, outdoor fans, or portable barbecue grills (for sheltered patios or decks). It can also be used for outdoor speakers or low-voltage outdoor recreation systems.
- Damp Indoor Areas: Areas with higher than normal humidity levels but not directly damp, such as bathrooms (outside the shower), kitchens, laundry rooms, or basements. Weather-resistant insulation protects against damage from accidental splashes or moisture.
- Semi-Open Commercial Applications: Wiring in locations such as retail storefront window display lighting (direct sunlight but rainproof), outdoor kiosks, or covered loading platforms where wiring may be exposed to minor weather conditions.
While UL SPT-1W wiring offers some weather resistance, it is not completely waterproof. It should not be submerged in water or used in areas with heavy rain or snow. For completely open, damp environments, more durable wiring (such as UL SPT-3W wire) is required.
Choosing UL SPT-1 and UL SPT-1W wires depends primarily on three key factors: environment, application, and budget. Follow this step-by-step guide to make the right choice for your project:
The most critical factor is the installation location: If the wire is only used indoors and the installation environment is dry and temperature-stable (e.g., living room, office), then SPT-1 wire is sufficient. It is affordable and meets the safety requirements for all indoor applications. If the wire will be exposed to mild outdoor environments (e.g., covered patios, shop windows), humid indoor environments (e.g., bathrooms, kitchens), or extremely cold environments, then SPT-1W wire is a better choice. Its weather-resistant insulation prevents aging and ensures long-term safety.
For basic indoor power (e.g., light fixtures, small appliances) or low-voltage indoor lighting, SPT-1 wire is ideal. It is lightweight and easy to install. For outdoor lighting, appliances in humid environments, or applications where wiring may be exposed to sunlight or moisture, SPT-1W wiring must be used to avoid safety hazards and premature failure.
Quick Decision Checklist
Use this checklist to quickly determine which type of wiring to choose:
✅ Choose SPT-1 if: Indoor use only, dry environment, basic power supply, limited budget.
✅ Choose SPT-1W if: Shaded outdoor use, humid indoor environment, extremely cold environment, exposure to UV/sunlight, long-term durability required.
Choosing a reliable manufacturer that meets international safety standards, including UL 62 and UL 1581, is crucial when sourcing SPT-1 or SPT-1W wires. This ensures the wires are safe, durable, and compliant with local electrical codes—essential for avoiding safety hazards and project delays.
Guangdong Zhengfeng Wire&Cable Co., Ltd. is a trusted supplier of UL SPT-1 and UL SPT-1W wires. With years of experience in the wire and cable industry, Zhengfeng focuses on mass-producing high-quality SPT-1 and SPT-1W wires that meet stringent international standards.
- Premium Materials: Zhengfeng Wire uses high-quality bare copper conductors with excellent conductivity; and employs a specially formulated PVC insulation layer (SPT-1W model is weather-resistant) to ensure product durability and a long service life. Uniform insulation thickness makes installation easier and reduces labor costs.
- Customized Solutions: Whether you need specific wire gauges (18-20 AWG), core configurations (2 or 3 cores), lengths, or even custom insulation colors, Zhengfeng Wire can provide tailored solutions to meet the unique needs of your project. Their expert team works closely with clients to deeply understand their needs and provide personalized products.
- Large-Scale Production Capacity: Zhengfeng Wire boasts advanced production facilities and large-scale production capacity, ensuring timely delivery even for large orders. Whether you are a small business or a large enterprise, they can efficiently meet your procurement needs.
- Reliable Service: From product consultation to after-sales support, Zhengfeng Wire provides professional and efficient service to ensure a smooth procurement experience. Our unwavering pursuit of quality and customer satisfaction has made us a trusted partner for customers worldwide.
We hope this guide has helped you clear up any doubts you may have about SPT-1 wire and SPT-1W lamp cord. If you have any further questions or need assistance selecting the right cables for your project, please feel free to contact the Guangdong Zhengfeng Wire&Cable team. Let's work together for mutual benefit.
