What is UL3239 Silicone Wire

Content

Ⅰ. What is UL3239 Silicone Wire?

Ⅱ. Where is UL3239 Used?

Ⅲ. UL3239 vs UL3135 vs PVC Wire

Ⅳ. Why Certification Matters for Export

Ⅴ. Customization & Manufacturing Advantages of Zhengfeng Wire

Ⅵ. Frequently Asked Questions

Ⅰ. What is UL3239 Silicone Wire? (Key Specifications & Certifications)

UL3239 is a silicone‑insulated high‑voltage wire widely used in internal wiring of appliances, LED drivers, industrial equipment, and electric heating devices. It is recognized under UL Subject 3239 and complies with international safety and environmental standards.

1.1 Key parameters:

PropertyValue

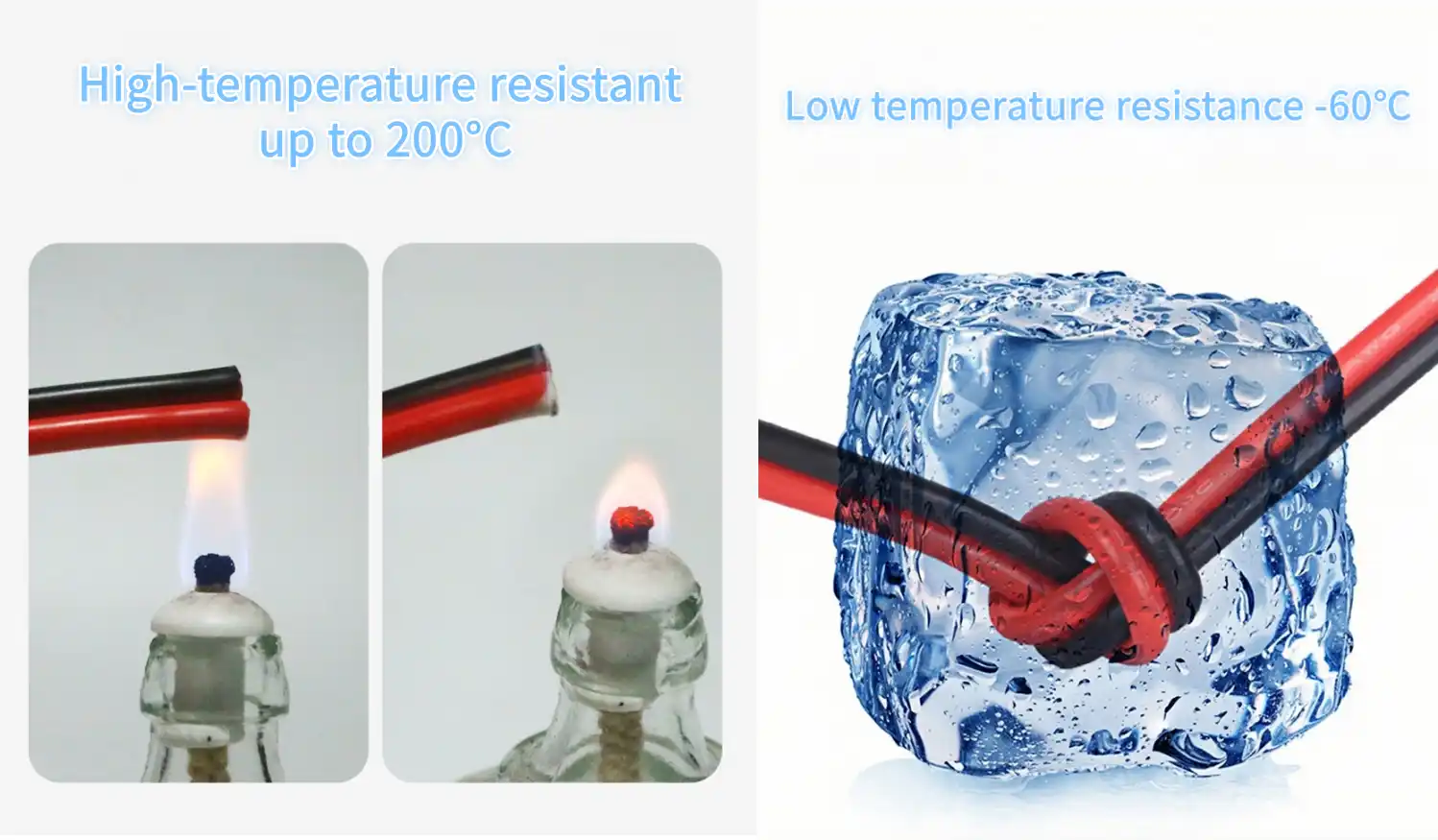

Temperature range:-60°C to +200°C

Voltage rating:3KV, 6KV, 10KV, 20KV, 30KV

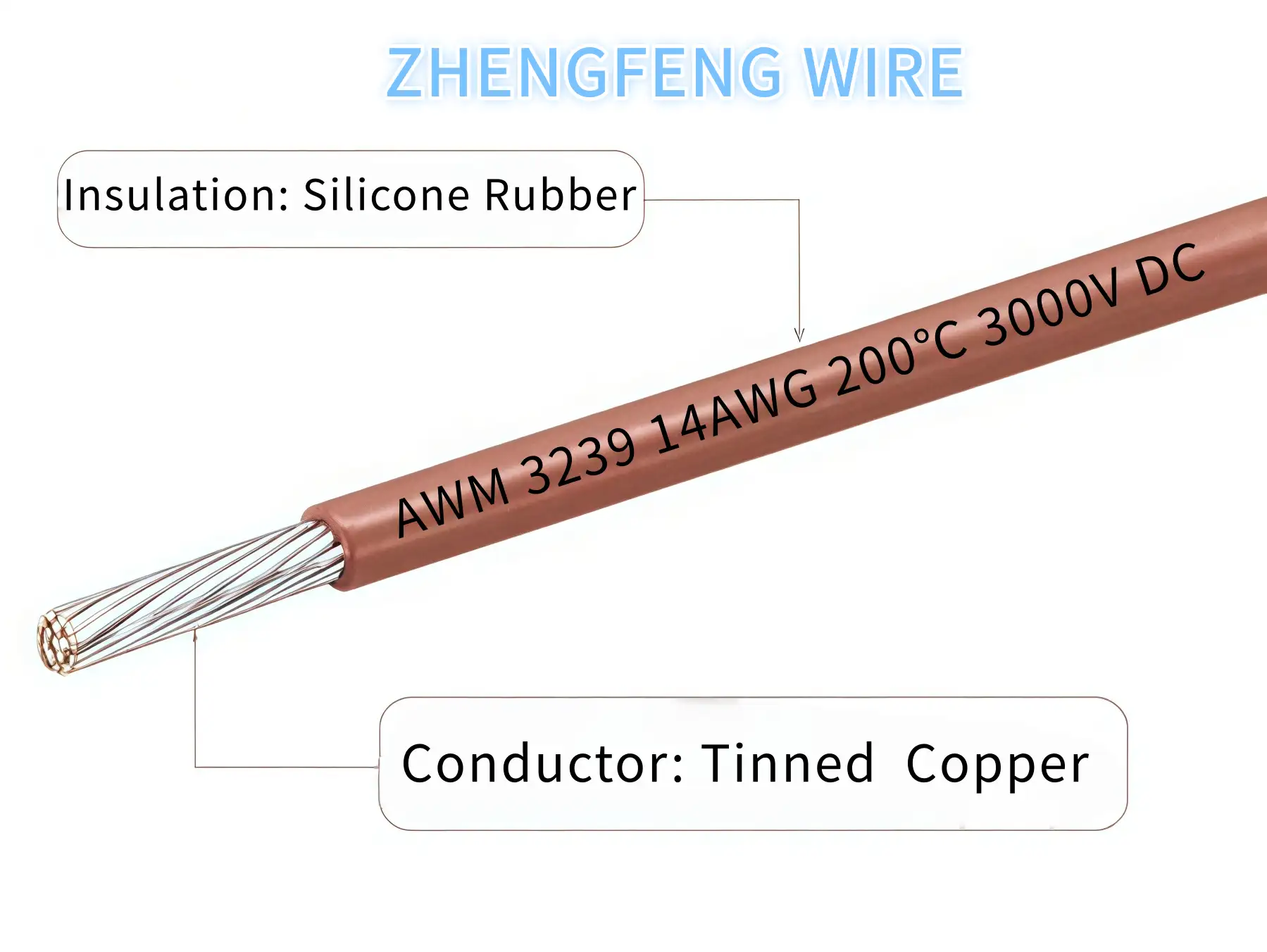

Conductor:Tinned or bare copper (stranded)

Insulation:Silicone rubber

Flammability:VW‑1 (vertical flame test)

Certifications:UL, CUL, RoHS, REACH

1.2 Why UL matters?

 UL certification ensures the wire has passed rigorous testing for electrical, thermal, and mechanical properties. For buyers exporting to North America or Europe, UL3239 helps your end products meet safety compliance.

Ⅱ. Where is UL3239 Used? (Application Scenarios)

Thanks to its high‑temperature resistance, excellent flexibility, and high‑voltage endurance, UL3239 silicone wire is found in:

LED lighting – Internal wiring of LED drivers, strips, and modules.

Household appliances – Rice cookers, ovens, electric kettles, space heaters, air conditioners.

Industrial equipment – Control cabinets, power supplies, motor leads, and high‑temp sensors.

Medical devices – High‑voltage cables for diagnostic equipment.

New energy & automation – Battery packs, charging piles, and industrial robots.

Pro tip: If your application involves continuous bending or exposure to oils / chemicals, silicone insulation outperforms PVC or XLPE wires significantly.

Ⅲ. UL3239 vs UL3135 vs PVC Wire – Which One to Choose?

Many buyers ask about the difference between UL3239 and UL3135. Here's a quick comparison:

Selection guide:

Choose UL3239 if your product requires >3KV withstand voltage or continuous high temperature above 150°C.

Choose UL3135 for 600V applications needing moderate heat resistance (up to 150°C).

Choose PVC only for low‑cost, low‑temperature, low‑voltage general wiring.

Ⅳ. Why Certification Matters for Export (UL, RoHS, REACH)

At Guangdong Zhengfeng Wire & Cable Co., Ltd., every UL3239 wire is produced under an ISO 9001:2015 quality system and carries:

UL / CUL – Safety for North American market.

RoHS – Restriction of hazardous substances (EU).

REACH – Registration, evaluation, authorization of chemicals (EU).

Why this benefits you？
When you source certified wires, your finished products (e.g., LED luminaires, medical devices) can pass customs and market surveillance without delays. We also provide full traceability – from raw material batch to final testing report.

Ⅴ. Customization & Manufacturing Advantages of Zhengfeng Wire

As a factory with over 25 years of experience, we offer tailor‑made solutions for UL3239 silicone wire:

Custom printing – Your logo, model number, voltage rating printed on the insulation.

Custom colors – Standard: white, black, red, blue, yellow. Any RAL color on request.

Cut – Pre‑cut lengths with precise length.

Packaging – Spool, reel, coil, or custom bag with barcode label.

Why partner with Guangdong Zhengfeng Wire&Cable?

•  In‑house extrusion & testing lab

• Expert Team Familiar with UL Standards

•  24‑hour sample service (free sample for evaluation)


•  Direct factory pricing – no middleman markup

Ⅵ. Frequently Asked Questions (FAQ)

Q1: What is the maximum current for UL3239 wire?
Current depends on conductor gauge (AWG) and ambient temperature. For example, 18AWG UL3239 at 200°C carries approx. 7A in open air. Contact us for a detailed ampacity chart.

Q2: Can UL3239 be used outdoors?
Direct outdoor exposure is not recommended because silicone rubber has moderate UV resistance. For outdoor use, we recommend adding a protective sleeve or choosing a UV‑stabilized variant – we can develop it for you.

Q3: What is the MOQ for custom UL3239 wire?
Standard colors and printing: MOQ 6100 meters. Fully customized (color + logo + packaging): MOQ 20,000 meters. Samples and small batches are available for testing.

Q4: Do you provide free samples?
Yes. We offer free samples (≤5 meters) for qualified buyers. You only pay the shipping cost.

Q5: How long is the lead time?
Stock items: 3‑5 days. Custom production: 15‑20 days (depending on quantity).
