Why Engineers Prefer To Choose The 8 AWG Silicone Wire?

As electronic devices and new energy systems push toward higher power and smaller form factors, the choice of internal wiring becomes critical. If your equipment needs to handle high currents—up to 190A or even 300A—or operate reliably in extreme temperatures ranging from -60°C to +200°C, standard PVC wire simply won't cut it.

That's where 8 AWG silicone wire comes in. In this article, we'll explore the characteristics, UL certification types, and key applications of 8 AWG silicone wire, and explain why GuangDongzhengfeng wires is a trusted manufacturer in this field.

Ⅰ.What is Silicone Wire?

Silicone wire uses silicone rubber as its insulation material, replacing common plastics like PVC or Teflon.

Its standout features are exceptional flexibility and an ultra-wide temperature range:

Extreme Flexibility: High-quality silicone wire uses fine-gauge tinned copper strands—often as thin as 0.08mm. This allows even a thick 8 AWG wire (approx. 8.4mm²) to bend easily, making it ideal for tight spaces inside equipment enclosures.

Wide Temperature Tolerance: Premium silicone wire operates reliably from -60°C to +200°C, performing equally well in freezing outdoor EV chargers and high-temperature industrial ovens.

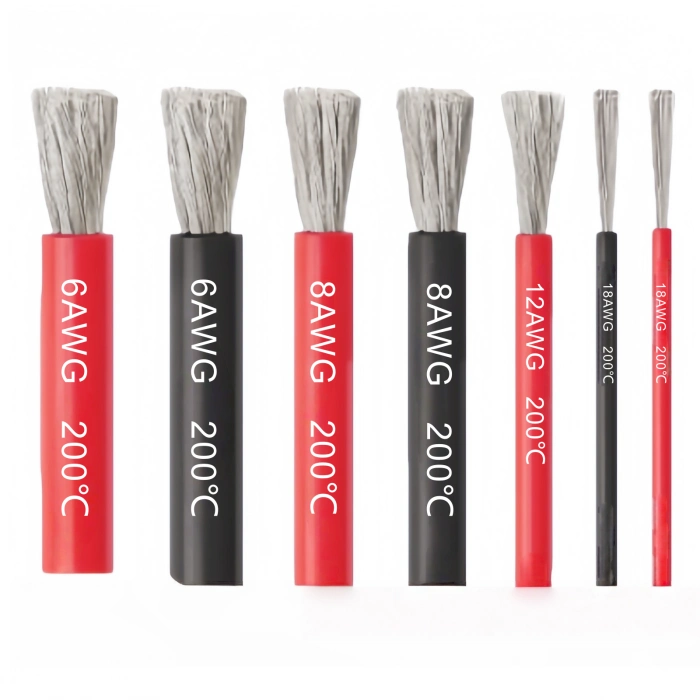

Ⅱ.Why 8 AWG Silicone Wire?

AWG (American Wire Gauge) is a standard where a smaller number means a thicker wire and higher current capacity.

8 AWG is widely considered the entry point for "high-current" silicone wire. Typical specifications include:

Cross-sectional area: 8.0mm² to 10mm²

Conductor construction: often 1650 strands of 0.08mm tinned copper​​​​​​​

Current rating: Up to 190A (depending on application and temperature)

This makes 8 AWG the go-to choice for battery connections in drones, robotic joints, automotive jump leads, high-power inverters, and energy storage battery packs.

Ⅲ.What UL Ratings Are Available for Silicone Wire?

UL (Underwriters Laboratories) certification is the gold standard for wire safety. Different UL model numbers indicate different temperature ratings, voltage ratings, and use cases.

Below is a quick comparison of common UL-rated silicone wire types—all of which Zhengfeng Wire can supply in 8 AWG:

For 8 AWG specifically, UL 3135 and UL 3512 are the most popular choices. UL 3135 prioritizes extreme softness (using 0.08mm ultra-fine strands), while UL 3512 offers greater tensile strength and mechanical durability (using thicker strands like 0.39mm).

Ⅳ.Common Applications of 8 AWG Silicone Wire:

Thanks to silicone's chemical stability (oil, acid, and chemical resistant) and 8 AWG's high current capacity, this wire is found in many demanding environments:

4.1 Solar & Energy Storage Systems — Connecting solar panels, linking battery cells in home storage systems, and internal wiring for EV chargers.

4.2 Drones & RC Models — The standard link between LiPo batteries and electronic speed controllers (ESCs) in racing drones and large RC aircraft.​​​​​​​

4.3 Robotics & Factory Automation — Industrial robot arms require millions of flex cycles; silicone wire handles this with ease.​​​​​​​

4.4 Heating Appliances — Internal wiring in industrial ovens, water heaters, and electric furnaces where temperatures can exceed 200°C.

Ⅴ.Why Choose Guangdong Zhengfeng Wire?

5.1 True, High-Purity Copper Construction

For large-gauge wire like 8 AWG, conductor quality is everything. While some suppliers cut corners with copper-clad aluminum (CCA) or fewer strands, Guangdong Zhengfeng Wire uses:

High-purity tinned copper — excellent conductivity and corrosion resistance, even in humid or high-temperature environments.​​​​​​​

Full strand count — e.g., 1650 strands of 0.08mm copper for 8 AWG, ensuring the rated current capacity is delivered.

5.2 Full UL Certification

Safety certifications are non-negotiable for exports or high-precision equipment. Zhengfeng Wire's  product range covers UL 3135, UL 3512, UL 3239, and others, all with UL VW-1 flame test approval.

Peace of mind — UL certification means the wire is flame-retardant and self-extinguishing under overload or short-circuit conditions.

5.3 Ultra-Fine 0.08mm Stranding Technology

The flexibility of silicone wire depends entirely on the stranding process. Guangdong Zhengfeng wires  uses advanced ultra-fine copper stranding for 8 AWG production:

Superior flexibility — excellent bending performance and extended flex life.​​​​​​​

Low eccentricity — precision extrusion ensures uniform insulation thickness, reducing the risk of dielectric breakdown, especially at higher voltages.​​​​​​​

Ⅵ.Summary

8 AWG silicone wire is much more than a simple cable—it's the main power artery for high-power systems. Whether you're building a home solar battery bank or assembling a competition drone, choosing 8 AWG, UL-certified silicone wire from Guangdong Zhengfeng Wire means you get:

✅ A current capacity of 190A+
✅ Safe, reliable operation from -60°C to 200°C
✅ Exceptional flexibility for tight installations

If you're looking for high-quality silicone wire solutions, contact Guangdong Zhengfeng Wire to request samples.

Experience the soft yet powerful performance of 8 AWG silicone wire for yourself.
